Aissmy household AC contactor 1p 2p 3p 4p 250v 400v
- shanghai or ningbo
- T/T Credit Card
You May Like
-
Household AC magnetic contactor 63A 2Phase 2NO manual ac contactor 50/60Hz
-
380V Coil AC Contactor 25A 4 Pole Contactor
-
High Quality Export 25A 4P AC Contactor China
-
Brand New Manual Control 220V 2P 25A Contactor
-
Household Circuit Contactor 40A 2pole 50Hz/60Hz 2NO Electrical Type
-
Aissmy Household home use contactor 20A 7A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aissmy | |
| Model Number | ct-16a | Electricity Type | AC | |
| Number of Pole | Other, 1\2\3\4 | Phase | Other, 1\2\3\4 | |
| Main Circuit Rating Voltage | Other, 250v 400v | Main Circuit Rating Current | Other, 16a 6a |
Product Description

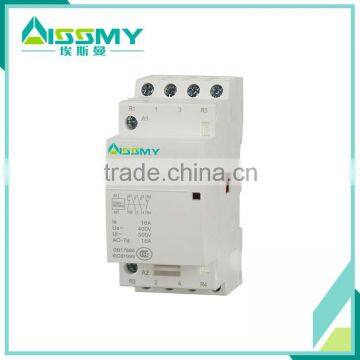

Household ACcontactor
The contactor is mainly used in the power system of AC 50HZz/60Hz,rated voltage up to 400v,rated working current up to 100A,under the AC-1,AC-7a using categories,for long distance switch and control circuit.
Main technical parameters
| Model | 16A | 20A | 25A | 40A | 63A | 100A | ||
| In(A) Rated current In(A) | AC-7a | 16 | 20 | 25 | 40 | 63 | 100 | |
| AC-7b | 6 | 7 | 8.5 | 15 | 20 | 30 | ||
| Prescribed heating current Ith(A) | 25 | 25 | 25 | 63 | 63 | 100 | ||
| Rated insulation voltage Ui(V) | 500 | |||||||
| Rated operating voltage Ue(V) | 250V(1P 2P) 400V(3P 4P) | |||||||
| Number of main contacts | 1P | 1NO 1NC | ||||||
| 2P | 1NO1NC 2NO2NC | |||||||
| 3P | 3NO 3NC | |||||||
| 4P | 2NO2NC 3NO1NC 4NO 4NC | |||||||
| Control power (KW) | AC-7a | 230V | 3.5 | 4.5 | 5.5 | 9 | 14 | 22 |
| 400V | 6.5 | 8 | 10 | 16 | 25 | 38 | ||
| AC-7b | 230V | 1.4 | 1.6 | 2 | 3.5 | 4.5 | 5.5 | |
| 400V | 2.4 | 2.4 | 3.4 | 6 | 8 | 11 | ||
| Electrical life (times) | 10*10000 | |||||||
| Mechanical life (times) | 100*10000 | |||||||
| Maximum switching frequency/1h | 30 | |||||||
| Rated control supply voltage Us (V) | AC 24/50Hz AC 230/50Hz | |||||||
Product display
Company Profile:
Located in the state-level high -tech pioneering pack in Shanxi Province, Assimy is a company which designs and produces high and low voltage electrical equipments and accessories. In order to expand business scope, Assimy set up a branch company in Liushi Wenzhou.
Assimy has a wide range of electric accessories include Magnetic contactor, Household contactor, CJ20, CJX2, GMC, Air conditioning contactor,DZ47-63,DZ47LE circuit breaker, Moulded case circuit breaker, Dual power automatic transfer switch, Isolating switch, Magnetic starter, Self loading type overvoltage and under voltage protection device, Power supply of the switch, Fuse, Surge protective device, etc.
