Home > Products > AC Spare Parts > 3 Wires Clockwise Steel-packed Fan Motor for Outdoor Air Conditioner YDK24-6-19

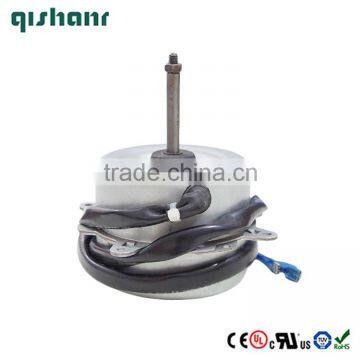

3 Wires Clockwise Steel-packed Fan Motor for Outdoor Air Conditioner YDK24-6-19

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port Guangzhou/Shenzhen/Hong Kong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	YDK24-6-19	Type	Asynchronous Motor
Frequency	50HZ	Output Power	24W
Protect Feature	Totally Enclosed	Certification	CCC, ROHS, UL
AC Voltage	208-230 / 240 V	Place of Origin	Guangdong, China
Efficiency	IE 1

Product Description

Nomenclature

Y	Asynchronous AC Motor
D(S)	D for Single-shaft ， S for Double-shaft
K	Air-Conditioner Motor
X	Rated Output Power
- X	Number of Poles
X - X	Design Series No.

Product Description

AC Motors Series

1)Motors are with either tap-control or pulse-control in speed control with elegant appearance, compact structure, optimal performance, low sound, minor vibration, high efficiency, low heat rise, low cost, etc.

2)Motors comply with JB4270-2002, GB12350-2000 and EN60335 standards.
3)Motors are safe and reliable, and protected by fuse or re-settable overheat protector.
4)Motors are CCC, UL, CUL, TUV and CE listed. Other safety certifications can be conducted according to customer requirements.
5)Motors are applicable to home appliance such as HVAC units, dehumidifiers, bread-makers, vegetable & fruit washer, water heaters and garbage disposers.

KEY FEATURE

* Motor casing structured by cap can design and good performance ensured by optimized lamination.

* High product safety and reliability guaranteed by build-in re-settable thermal protector or fuse.

* Applied in outdoor unit of split air conditioners.

Key Specifications

Item	Voltage	Output	Frequency	RPM	IP Rating	Insulation Class
Parameter	100-120V~	15~150W	50Hz,60Hz	600~1300rpm	IP24	Class B/F(CCC)
Parameter	208-240V~	15~150W	50/60Hz	600~1300rpm	IP24	Class A/B(UL)

Technical Features

1)Application ambient temperature: -5℃~+43℃(special design for special temperature applications).

2)Rotation:designed according to customer requirement.

3)Power lead and accessorized terminal:designed according to customer requirements.
4)Both copper wire and aluminum wire are applicable in winding.

Configuration

SizeDimension	A	B	C	D	E1	E2	F	G
Φ95	75~200	45~150	8~100	8~50	30~46	30~46	8~30	M5~M10
Φ110	75~200	45~150	8~100	8~50	30~46	30~46	8~30	M5~M10
Φ120	90~200	50~150	8~100	8~50	40~52.5	40~52.5	8~30	M5~M12

Detailed Images
