36mm Square 12V Digital RGB Addressable LED Pixels Modules (Strand of 20) - WS2801
- 5000 Piece / Pieces per Month
- Shenzhen port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | SY-3636-WS2801 | Chip Material | AlGaInP | |
| Emitting Color | Other, RGB color changable | Luminous Intensity | 6000mcd | |
| Luminous Flux(lm) | 18-20lm | Optical Attenuation(%) | 0.03% | |
| Power | Other, 0.96W | Power Dissipation | 0.96W | |
| Color Rendering Index(Ra) | 80 | Operating Temperature(℃) | -20, +40 | |
| Storage Temperature(℃) | -40, +60 | Place of Origin | Guangdong, China | |
| Brand Name | SOYA LED | Certification | CE |
Product Description

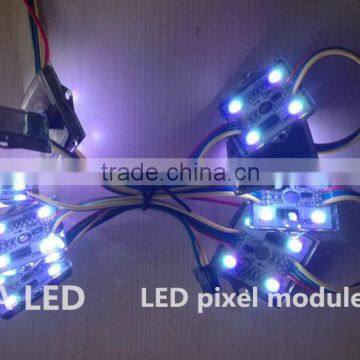

36mm Square 12V Digital RGB Addressable LED Pixels Modules (Strand of 20) - WS2801
Specifications
- 36mmx36mm squares (1.4") 5mm deep (0.2")
- 75mm / 3" apart on the strand
- 20 pieces per strand,50 pieces per strand (maximum)
- These pixels use a WS2801 chip for full 24 bit color, constant-current drive
- 12VDC power, 120mA maximum per pixel (LED on full white)
- 2-pin SPI-like protocol
- Brightness per pixel: 6000 mcd combined(R2800,G6800,B2400)
This is a string of 20 RGB LED pixel modules or 50 modules(maximum), each with 80mm between the next(the cable length is 100mm). Each pixel consists of four SMD5050 RGB LEDs and a WS2801 driver chip and each strip can be cut into sections and still work, or, if you need something longer, they can be daisy chained with other strands to build huge displays capable of basic video frame rates.
The pixel module comes in a metal casing with a central hole and two smaller side holes to allow for the pixel modules to be mounted and are flooded with epoxy resin to provide waterproofing.
Each colour channel of every RGB led is 8 bit. This equates to 16.7 million colours. The LEDs are controlled by shift-registers built into each pixel. In order to drive the strip you need 12v, GND and Data and Clock- easy! Once the registers are loaded, you can stop sending data.
