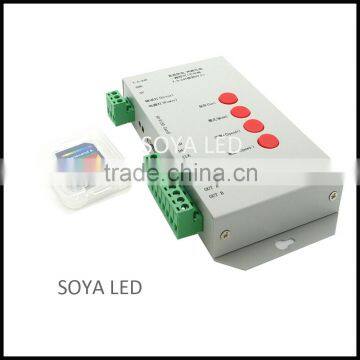

programmable led pixel controller 2048 pixels T1000s

FOB Price

US$ 1 - 30 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SOYA LED
Model Number	SY-T1000s	Type	Manual Switch
Max. Load Power	3W	Voltage	Other, DC5-24V

Product Description

programmable led pixel controller 2048 pixels T1000s

Product Description

1. The programmable led pixel T1000S SD card LED controller makes controlling your LED displays easy. Compatible with wide range of addressable LEDs and DMX signal communication protocol.

2. Perfect addressable LED solution for people who don't want to programme Arduino or other controllers. No programming code required.

3. Using the programmes LEDedit 2014 or Glediator lets you draw your LED patterns visually, you can specify how the LEDs are arranged, preview them, then upload to an SD card. The SD card plugs into the controller and displays your pattern. You can even upload video for your LEDs to display!

Comes with a 256MB SD card included.

Note: To copy files to SD card, you must first format to the SD card. SD card must be formatted as "FAT" format.

Product features

Features for programmable led pixel controller 2048 pixels T1000s

Product

programmable led pixel controller 2048 pixels T1000s

Working voltage

Runs at DC 7.5-24V using an on board voltage regulator;

Or can be run off a single DC 5V source if you're running DC 5V led pixel digital srings/ strips

Control led pixels quantity

Drive up to 2048 pixels maximum using 256 brightness levels per color (24 bit color)

Support led pixel effects

Supports all the various rules-shape, special shape processing

Programs quantity

Off-line use can support 16 programmes stored in the SD card

Led pixel Controller software

LedEdit2014 / Glediator

Multiple programs name form

00_1.led, 01_1.led, 02_1.led, 03_1.led, etc

Choose programs

speed / model

Using buttons on the controller, you can adjust the playback speed and choose the display program. Achieve to save the play list functions

Support our led products

LED pixle lights like 12mm led rgb pixel lights, 26mm 1903 pixel leds, etc;

LED digital strips like ws2801, ws2812b, ws2811, apa102 rgb pixel digital strips, etc;

LED digital modules like ws2801 ,lpd6803 rgb digital modules, etc;

Note:

1.T-1000S-port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced.

2.Strong recommend you to connect the led pixel lights quantity no more than 1024 pixels per T1000s pixel controller.

3. Special issue,when you make LED video display, recommend the led pixels quantity no more than 512 pixels.

Compatible with wide range of addressable LED chipsets:

TM1803/TM1804/TM1809/TM1812/TM1825/TM1826/TM1829/TA9909/TA9912
UCS1903/UCS1912/UCS2903/UCS2909/UCS2912/UCS3903/UCS3912/UCS8903/UCS8904
LPD6803/LPD1886/LPD1882/LPD1889/LPD6812/LPD6813/LPD8806/LPD8809
SM16716/SM16726/SM16711/SM16703
WS2811/WS2801/WS2803/WS2812B
LX1003/LX2003/LX2006
INK1003/INK1009
P9813/P9816/D705
APA102, APA12C
TLS3001/TLS3008/TLS3100
