Home > Products > Industrial - Electrical Product > High Quantity SVC-5000w CE ROHS Approved 5KVA Svc 250V ac Single Phase Regulator Factory Price

High Quantity SVC-5000w CE ROHS Approved 5KVA Svc 250V ac Single Phase Regulator Factory Price

FOB Price

US$ 60 - 90 / Set

10 Sets(Min. Order)

Port shanghai/ningbo
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CHENF	Model Number	SVC-5000
Usage	SVC	Phase	Single Phase
Current Type	AC

Product Description

Specifications

1.OEM factory

2.Passed CE/ISO Cert

3.have trade with many countries

4.New product development ability

Product Description

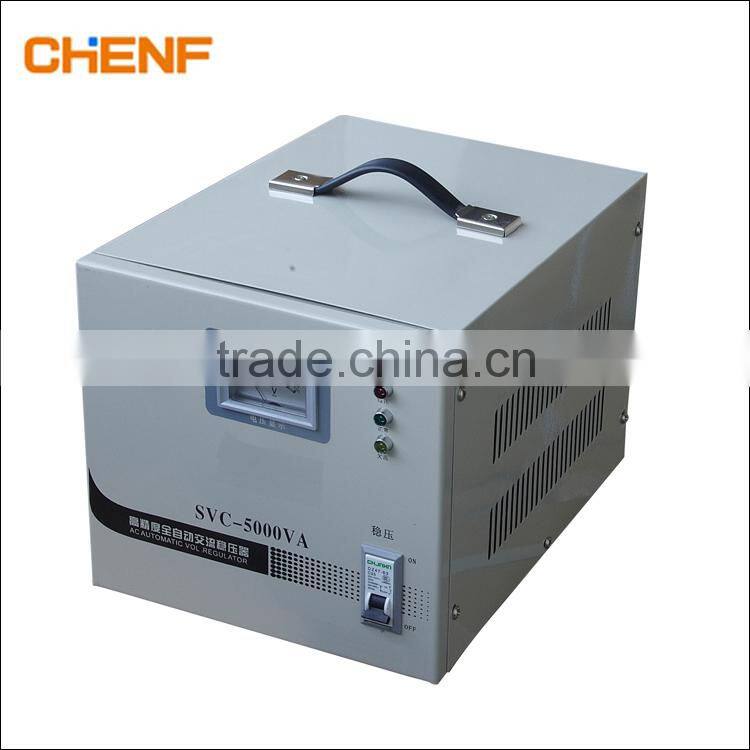

SVC Single Phase Automatic Voltage Regulator

Descriptions of SVC Single Phase Automatic Voltage Regulator SVC series voltage regulator can be widely used in areas, where the main voltage often comes across sharp fluctuation or sharp seasonal variation, such as industrial production, scientific research, medical treatment & hygiene, household electrical appliances.

It has excellent features, such as elegant appearance, compact structure, light weight, small waveform distortion, high efficiency, complete protection functions, stable and reliable performance and so on.

Features of SVC Single Phase Automatic Voltage Regulator (AVR: 500 VA - 30K VA)

1. Automatic voltage regulation 2. Our voltage regulators can protection against brownout & over voltage 3. Wide input voltage range 4. Short circuit & overload protection 5. Optional delay time 6. LCD/LED/analog display for your option

Product Parameter

Specification of AVR		SVC-500VA	SVC-1000VA	SVC-1500VA	SVC-2000VA	SVC-3000VA	SVC-5000VA
Input	Phase	Single phase
	Voltage	AC 150V-250V/50V-130V
	Frequency	50Hz/60Hz
Output	Voltage	220V±3% / 110V±6%
	Capacity	400W	800W	1200W	1600W	2400W	4000W
	Frequency	50Hz/60Hz
Protection	Low voltage	AC 184V±4V
	Over voltage	AC 246V±4V
	Time Delay	3-7sec/3-7min Selectable
	Overload/short circuit	YES
Packaging	Pcs per Carton	4			1
	Shipping Wt.(Kg)	16.6	21.35	23.15	7.9	11.45	20.8
	Packing dimensions(mm)	245340425	495285390		355295240	365275280	540325270
Efficiency	AC-AC	>95%
Acoustic	Noise level	≤50dB
Environment	Temperature	-5°C to 40°C
	Humidity	20% to 90%
QTY (pcs)	20FT	3200	2100	2100	1120	1120	600

Specification of AVR		SVC-7500VA	SVC-10KVA	(Vertical) SVC-10KVA	SVC-15KVA	SVC-20KVA	SVC-30KVA
Input	Phase	Single phase
	Voltage	AC 150V-250V
	Frequency	50Hz/60Hz
Output	Voltage	220V±3%
	Capacity	6000W	8KW	8KW	12KW	16KW	24KW
	Frequency	50Hz/60Hz
Protection	Low voltage	AC 184V±4V
	Over voltage	AC 246V±4V
	Time Delay	3-7sec/3-7min Selectable
	Overload/short circuit	YES
Packaging	Pcs per Carton	1
	Shipping Wt.(Kg)	27.65	30.5	35	51.3	61.15	80.2
	Packing dimensions(mm)	610360305		370330580	395415705	395430815	530440955
Efficiency	AC-AC	>95%
Acoustic	Noise level	≤50dB
Environment	Temperature	-5°C to 40°C
	Humidity	20% to 90%
QTY (pcs)	20FT	420	420	400	245	210	125

As a professional SVC single phase AVR manufacturer and supplier, we have received ISO9001 certification. In order to meet market demand of automatic voltage regulators, we can also provide 3-phase voltage regulator, relay type voltage regulator, contact voltage regulator, etc. Our products are proved by CE and exported to Russia, Southeast Asia and Africa. Welcome you to visit our company or contact us freely!

MEASURES

Model	Package size(cm	Weight(kg)
500VA	18.7×16.8×1.37	1.1
1000VA	20.8×20×15.5	1.3
1500VA	20.8×20×15.6	3.1
2000VA	28×23.5×19.5	5.1
3000VA	31×22×21	6
5000VA	31.5×24.7×20	22.5
8000VA	40×32×20	27
10000VA	40×32×21	35
