High efficiency TM-880W voltage regulator automatic stabilizer for home 220v hot sales input voltage 220V

Specifications

1)880w voltage stabilizer 2)Input:150-260V Output:220V )Certificate:CE,ISO9001 4)5-7 days,Fast deliver

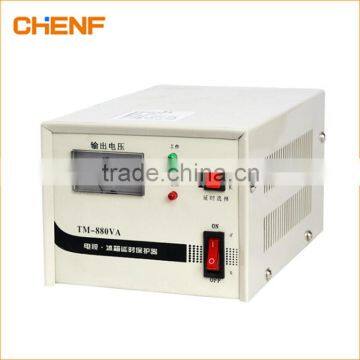

  TM-880W single phase high accuracy full automatic AC voltage stabilizer

1. Product Introduction

 TM series servo motor automatic voltage stabilizer is the first generation of voltage stabilizer and made of contact type self-coupling voltage regulator, servo motor and automatic control circuit, etc. When the network voltage is unstable or the load change, the automatic sampling control circuit sends a signal to drive the servo motor to adjust the contact type self-coupling voltage regulator's carbon brush position, which finally make the output voltage regulated to the rated value and be stable. The overvoltage, undervoltage and delay protection can be added as per your requirement.

2. Technical parameter

Power Range: 0.5KVA-10KVA (single phase)

Input Voltage: Ordinary 130-260V, or optional larger range

Output Voltage: Ordinary 220V and 110V (Power: 500VA-5000VA), 220V (Power: 7.5KVA-10KVA)

Output Accuracy: 220V±3%, 110V±5%

Coil Material:

Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order

Power Range:0.5KVA-10KVA (single phase)

Input Voltage: Ordinary 130-260V, or optional larger range

Output Voltage: 220V±3%

Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized

Coil Material:

Ordinary compensation transformer aluminum and adjusting transformer copper, full copper can be customized

Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order

Frequency: 50Hz/60Hz

Adjusting Time: <1s

Adjusting Speed: >15V/s

Waveform Distortion: Do not produce additional waveform distortion (static)

Efficiency: >95%

Relative Humidity: ≤95%

Ambient Temperature: -10 ~ +40°C

Dielectric Strength: 1500V/min

Insulation Resistance: ≥5MΩ

3.Features And Benefits

Small Size; Light Weight; Easy To Use

Very Low Price

Protect your home appliances everyday, such as TV, Refrigerator, Elevator, Air Conditioner, etc

1.TM-880w voltage regulator

 2.Super quality

3.Competitive price

 4.Extensive sales channels
