API Shale Shaker

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SINOTAI
Model Number	ZS	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

standard

Product Description

Specifications

1.Shale Shaker
2.Easy operation
uce intensity effectively
4. improve work efficiency
5.API Spec

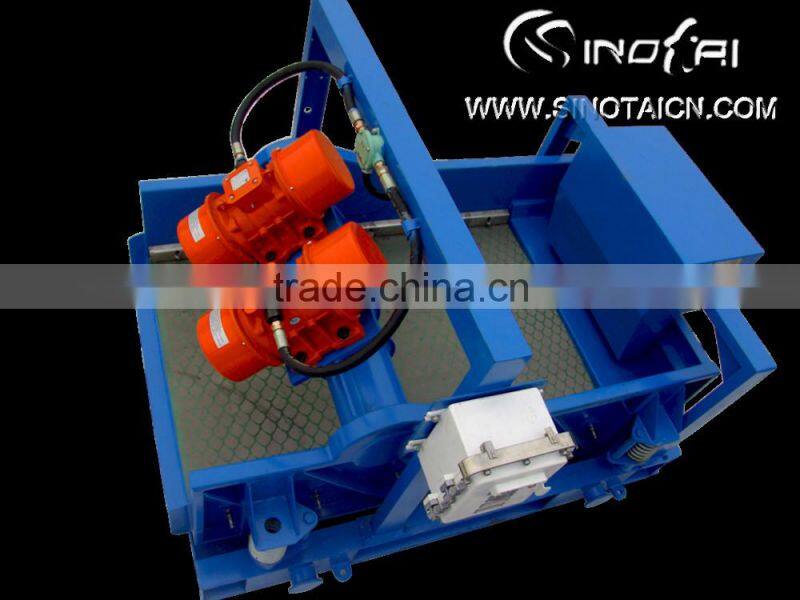

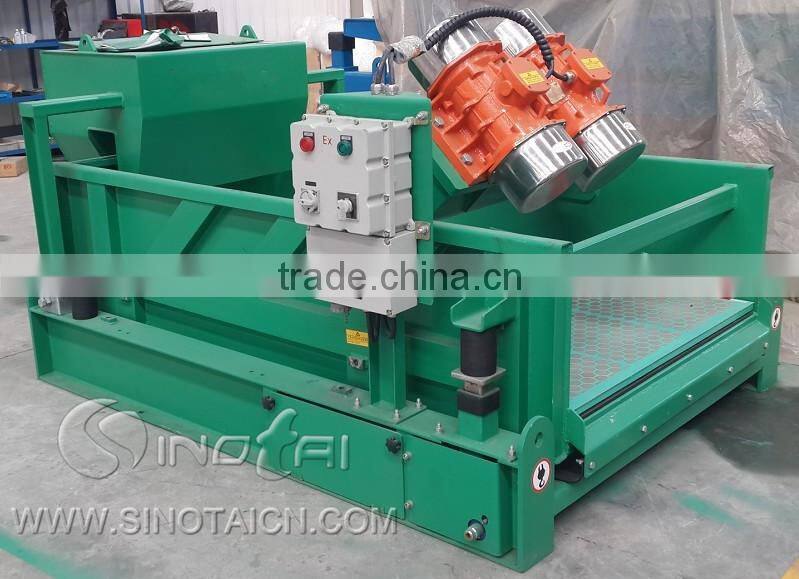

Shale Shaker

Main feature:

The shale shaker is the first grade of solids control equipment in drilling purification system.

It can remove cuttings above 75μm brought from the drilling well and the liquid with smaller particles will flow into tanks from where the fluid will flow into next grade solids control equipment to be treated.

Vibrating Mode: Linear motion.

The main technical performance and specification for the shale shaker:

Model	ZS833	ZS633	ZS703	ZS852	ZS832
Vibrating Mode	Linear motion	Linear motion	Linear motion	Linear motion	Linear motion
Motor Power	2×1.8/1.72KW	2×1.5KW	2×1.5KW	2×1.0KW	2×1.0KW
Vibrating Strength	≤7.0G	≤7.0G	≤7.6G	≤7.6G	≤6.5G
Double Amplitude	5.5~6.0mm	5.5~6.0mm	6.0~7.2mm	6.0~7.2mm	5.5~6.0mm
Treating Capacity	140m3/h615GPM	120m3/h528GPM	120m3/h528GPM	90m3/h396GPM	80m3/h352GPM
Deck Adjustment	-1°~5°	-1°~5°	-1°~5°	-1°~5°	0°~3°
Power	380V/50HZ,460V/60HZ
Screen area	2.7	2.4	2.6	2.1	1.8
Screens of Deck	830×1080mm×3	630×1250mm×3	700×1050mm×3	850×1080mm×2	830×1080mm×2
Amount of screen	3	3	3	2	2
Weir Height	746mm
Decibels	<85db
Starter	Magnetic force starter
weight	1880kg	1680kg	1680kg	1480kg	1300kg
Remarks	Treating capacity test from mud:1.2g/cm3density & viscosity 45s & 40 mesh screen
