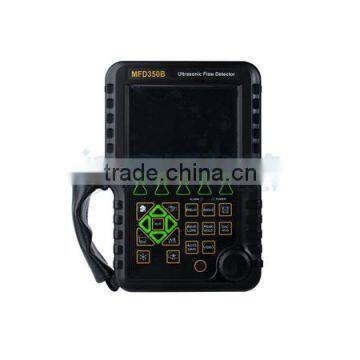

Portable Ultrasonic Flaw Detector MFD350B
Negotiable
/ Set
1 Set(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JB | |
| Model Number | MFD350B |
Product Description
Specifications
Portable Ultrasonic Flaw Detector MFD350BPortable Ultrasonic Flaw Detector MFD350B
Overview
MFD350B Portable Digital Ultrasonic Flaw Detector is a economical and practical model improved on MFD500B. Except for the differences of its measuring range, working frequency and transmitted pulse parameter, the other performances are the same as MFD500B.
SPECIFICATIONS
- Range:(0 ~ 6000) mm
- Bandwidth:(0.5 ~ 10) MHz
- Material Velocity:(1000 ~ 9999) m/s
- Dynamic Range: ≥ 32dB Vertical linear error: ≤ 3%
- Horizontal linear error: ≤ 0.2%
- Resolution:> 40dB (5P14)
- Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mm-2)
- Rejection: (0 to 80)%
- Linear Noise level: ≤ 10%
- Power supply: DC 9V lithium batteries work for 10hours or more Ambient
- temperature:(-20 ~ 50) °C
- Relative Humidity: (20 ~ 95)% RH
- Overall dimensions: 263 × 170 × 61 (mm)
MFD350 Standard Configuration
| No. | Item | Quantity |
| 1 | Main Body | 1 |
| 2 | Straight Beam Probe 4P,10mm | 1 |
| 3 | Angle Probe 4P8*9,60° | 1 |
| 4 | Machine-probe Cable | 1 |
| 5 | Battery Module | 1 |
| 6 | Power Adapter (Charger) | 1 |
| 7 | Support Pillar | 1 |
| 8 | Manual | 1 |
| 9 | Instrument Case | 1 |
| 10 | Software with cable | 1 |
