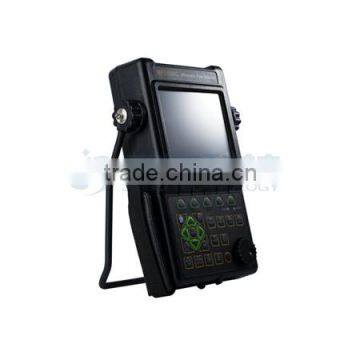

MFD650C Portable Ultrasonic Flaw Detector
Negotiable
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- shenzhen/shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JB | |
| Model Number | MFD650C |
Product Description
Specifications
MFD650C Portable Ultrasonic Flaw DetectorMFD650C Portable Ultrasonic Flaw Detector
FEATURES
MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display.
The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), it is easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
SPECS
- Channels: 100 channelsRange: (0 ~ 9999) mm
- Bandwidth: (0.2 ~ 20) MHz Material Velocity: (300 ~ 15000) m / s
- Dynamic Range: ≥ 36dB
- Vertical linear error: ≤ 2.5%
- Horizontal linear error: ≤ 0.1%
- Resolution:> 40dB (5P14)
- Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mm-2)
- Rejection: (0 to 80)% Linear Noise level: ≤ 8%
- Power supply: DC 9V;
- lithium batteries work for 8 hours or more Ambient temperature: (-20 ~ 50) °C
- Relative Humidity: (20 ~ 95)% RH
- Overall dimensions: 263 × 170 × 61 (mm)
MFD650C Standard Configuration
| No. | Item | Quantity |
| 1 | Main Body | 1 |
| 2 | Straight Beam Probe | 1 |
| 3 | Angle Probe | 1 |
| 4 | Machine-probe Cable (Q9-Q9) | 1 |
| 5 | Battery Module | 1 |
| 6 | Power Adapter (Charger) | 1 |
| 7 | Support Pillar | 1 |
| 8 | Manual | 1 |
| 9 | Instrument Case | 1 |
| 10 | Datapro Software | 1 |
| 11 | USB communication Cable | 1 |
MFD650C Portable Ultrasonic Flaw Detector
