Mitech MFD Series Ultrasonic Flaw Detector

Specifications

Our company supply high quality MFD800C Ultrasonic Flaw Detector to our guests all over the world. We have been working in this market for several years.  Welcome to visit us.

Our company website:www(dot)wxjiebo(dot)cc

Wuxi Jiebo Electrical Technology Co.,Ltd, is a manufacturer on analytical instruments, enjoying a good reputation and feedback from our customers domestic and overseas. We provide main machines, as following:

1) CS995/996 High-frequency infrared carbon and sulphur analyzer

2) JB-750 Optical Emission Spectrometer

3) JB-1000 Inductively Coupled Plasma Atomic Absorption Spectroemter.

4) Various types of physical testing machines and spare parts...

Introduction

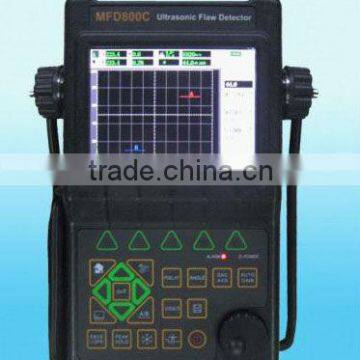

The MFD800C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.

The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.

The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.

1.1 Features of the Instrument

The instrument extends the performance and range of applications that are capable of being satisfied by a portable instrument. The quality, portability, durability, and dependability that you have come to expect from the popular Mitech MFD Series of instruments remain.

Display

Hi-resolution (640×480 pixels) multi-color TFT LCD with 4 user-selectable brightness control provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness.

The hi-resolution multi-color TFT LCD display with fast 60 Hz update gives an “analog look” to the waveform providing detailed information that is critical in many applications including nuclear power plant inspections.

Range

Up to 9999 mm in steel; range selectable in fixed steps or continuously variable. Suitable for use on large work pieces and in high-resolution measurements.

Pulser

Pulse Energy selectable among 200V, 300V, 400V, 500V and 600V.

Pulse Width tunable from 0.1µs to 0.5 µs to match the probes with different frequency.

Pulse Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments.

Damping selectable among 68Ω,100Ω,150Ω and 500Ω for optimum probe performance

Test Modes include Pulse echo, dual and thru-transmission

Receiver

Sampling:10 digit AD Converter at the sampling speed of 160 MHz

Rectification:Positive Halfwave, Negative Halfwave, Fullwave and RF

Analog Bandwidth: 0.5MHz to 15MHz capability with selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.

Gain:0 dB to 110 dB adjustable in selectable steps 0.1 dB, 2 dB, 6 dB, and locked.

Gates

Two fully independent gates offer a range of measurement options for signal height or distance using peak triggering.

The echo-to-echo mode allows accurate gate positioning for signals which are extremely close together.

Gate Start: Variable over entire displayed range

Gate Width: Variable from Gate Start to end of displayed range

Gate Height: Variable from 0 to 99% Full Screen Height

Alarms: Threshold positive/negative

Memory

Memory of 1000 channel files to store calibration set-ups

Memory of 10000 wave files to store A-Scan patterns and instrument settings.

All the files can be stored, recalled and cleared.

Video Recorder

Screen scenes can be captured as movie files. More than 10 hours movie can be saved to the inside memory. They can be re-played using the instrument or the PC software delivered with the instrument.

Video Recorder is useful in many situations, it is very convenient for those who want to analyze the probing activities later.

Specifications:

Range: 0 to 9999 mm, at steel velocity

Material Velocity: 1000 to 9999m/s

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.

Test Modes: Pulse echo, dual element and thru-transmission

Pulser: Tunable Square Wave Pulser

Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz

Pulse Energy: 200V, 300V, 400V, 500V, 600V selectable

Bandwidth (amplifier bandpass ): 0.5 to 15 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Rectification: Positive half wave, negative half wave, full wave, RF

System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

Reject (suppression): 0 to 80% full screen height

Units: Inch or millimeter

Transducer Connections: BNC or LEMO

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Operating Temperature: -10°C to 50°C

Storage Temperature: -30°C to 50°C
