Home > Products > WinCE Mobile PDA > Handheld biometric computer with fingerprint reader,GPRS,barcode scanner,RFID,GPS,WiFi,Camera

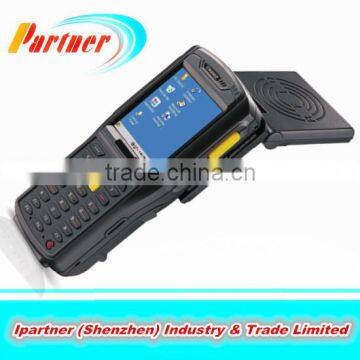

Handheld biometric computer with fingerprint reader,GPRS,barcode scanner,RFID,GPS,WiFi,Camera

FOB Price

USD $400 - $1,200 / Piece

5 Pieces(Min.Order)

Port Hong kong Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Operating System	Other, Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core
Processor Type	Other, freescale, for Samsung	Style	Handheld Computer
Memory Capacity	128MB	Screen Size	3.2"
Weight	350g	Brand Name	ipartner
Model Number	BT5600	Place of Origin	Guangdong, China
Color	Black

Product Description

Handheld biometric computer with fingerprint reader,GPRS,barcode scanner,RFID,GPS,WiFi,Camera

1.Windows CE 6.0 OS Rugged Handheld PDA Terminal support Barcode scanner,WIFI,BT,RFID reader
2.Windows CE 6.0
3.GPRS/GSM,GPS

Products DetailS:

CPU	Samsung ARM920T@533 MHz
Operating system	Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core (optional)
Memory	128 MB RAM/1 GB Flash
Expansion Memory	Expansion Memory
Screen	3.2” QVGA backlight TFT-LCD, 65 K colors. 240 x 320 (QVGA size)
Key Pad	numeric, full alphanumeric (optional)
Input method	touch input and keyboard input
Expansion slots	SIM/SAM, Micro SD (TF) card
Programming environment	.NET and C++ programming using Microsoft Visual Studio 2005&2008 or higher
Programming environment	Software Development Kits (SDK) provided
Interfaces	USB 2.0; RS232
Fingerprint (Optional)	Sensor type- induction type
	Function- fingerprint enrollment, process, acquisition, compare, delete etc.
	Performance- FRR < 0.1%; FAR < 0.001%
	Math time(1-1)- < 0.1 sec
	Math time(1-N)- < 0.5 sec
1D laser scanner (Optional)	Brand- Symbol SE955
1D laser scanner (Optional)	Types- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS
2D scan engine (Optional)	Brand- Symbol SE4500
	Types- 1D- all major codes;
	2D- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; etc.
LF (Optional)	Operating frequency- 125 kHz, 134.2 kHz
	Protocol- ISO11784, ISO11785
	Read/write range up to- 3.15 in (8cm)
HF (Optional)	Operating frequency- 13.56 MHz
	Protocol- ISO14443A/B, 15693 (optional)
	Read/write range up to- 3.15 in (8 cm)
UHF (Optional)	Operating frequency-
	China- 920 ~ 925MHz
	Europe- 865 ~ 868MHz (ETSI EN 302 208)
	Other- 840 ~ 960MHz (for customization)
	Protocol- EPC, GEN2/ISO18000-6C
	Read range up to- 98.425 in (250 cm)
	Antenna- 3dBi
	Power- +10dBm ~ +30dBm
Wireless WAN (Optional)	Network (WWAN)- EDGE/GPRS/GSM 900/1800 MHz;
Wireless WAN (Optional)	850/900/1800/1900 MHz (optional) ,GPS (Optional)
Wireless	WiFi- muRata IEEE802.11b/g
Wireless	Bluetooth- Class II, 3-5 M(Optional)
Camera (Optional)	Samsung 3.2 mega pixels, 2048 (H)*1536 (V), QXGA
Language	Chinese(GB2312 or GB18030),English,French,German, Latin, Russian, Arabic
Battery	rechargeable li-ion polymer battery (3.7 V/4,000 mAh)
	Operating temperature- -20 °C ~ 50 °C
	Storage temperature- -25 °C ~ 70 °C
	Humidity- 5% RH ~ 95% RH (non-condensing)
Environmental	Dropping survive- 1.5-meter drop test on six sides (concrete floor, under operating temperature range)
	Rolling survive- 1,000 times, 0.5 meter, rolling by six contact surfaces
	Environmental sealing- IP64
Dimension	186.57548 mm (L × W × H)
Weight	Weight- < 500 g (with battery)
Optional Accessories	Standard- battery, charger/adapter, data cables, stylus, hand strap, 4G micro SD (TF) card, protective film
	Optional- cradle, thermal printer
	Refer to Accessories Appendix
Thermal printer(external)	1138248 mm
	Communication- Bluetooth 2.0; RS232
	Paper width- 48 mm
	Accessories- thermal paper, carrying case, power adapter, battery

Application Scenarios:

A, Ticket Verification (Barcode scanners) & Car Park Charging (POS terminals)

B, People Verification & Authentication (Fingerprint Sensors, ID Card Readers)

C, Driving License & Car Verification (Police Affairs Terminals)

Our Advantage:

Free SDK :

No special training required. Customers can also set up the handheld system in other languages

(beside Chinese & English).

Open API:

Free SDK, open software platform for secondary application development and customized programs.

Our Services:

1	Trade terms :	FOB,FCA,EXW,CIF,CNF
2	Payment way :	T/T, West Union, Money Gram, L/C
3	Payment condition :	30% deposit in advance, 70% balance before delivery
4	Shipping way :	DHL, EMS, FEDEX,UPS
5	Delivery time :	Sample order after ensure the payment in 2- 5 days,
5	Delivery time :	Batch order could negotiate basic on quantity.
6	Package :	Neutral carton
7	Warranty :	1 year warranty for main device as well as 24 hours on line service to help you out.

Factory & company show:
