Mobile data collector,Pistol Grip,Barcode scanner

CPU

Freescale 800MHz

Operating system

Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core (optional)

Memory

256 MB RAM/4 GB Flash,MicroSD/TF card,maximum 32G

Expansion Memory

Expansion Memory

Screen

3.5” QVGA backlight TFT-LCD, 65K colors, 240 W x 320 L (QVGA size)

Key Pad

numeric, QWERTY keyboard (optional)

Input method

touch input and keyboard input

Expansion slots

PSAM, SIM/PSAM,

MicroSD/TF card slot under the battery

Programming environment

C++, C#, VB.NET using Microsoft Visual Studio 2005&2008 or higher

Software Development Kits (SDK) provided

Interfaces

USB port for sync with PC (set USB as OTG,
it recognizes external devices like U disk)
RS-232 port for printer debugging
DC port for charging

1D laser scanner (Optional)

SE655 CCD or SE955 laser;

Types- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS

2D scan engine (Optional)

Brand- Symbol SE4500 CMOS

Types- 1D- all major codes;

2D- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; etc.

LF (Optional)

Operating frequency- 125 kHz, 134.2 kHz

Protocol- ISO11784, ISO11785

Read/write range up to- 3.15 in (8cm)

HF (Optional)

Operating frequency- 13.56 MHz

Protocol- ISO14443A/B, 15693 (optional)

Read/write range up to- 3.15 in (8 cm)

UHF (Optional)

Operating frequency-

China- 920 ~ 925MHz

Europe- 865 ~ 868MHz (ETSI EN 302 208)

Other- 840 ~ 960MHz (for customization)

Protocol- EPC, GEN2/ISO18000-6C

Read range up to- 98.425 in (250 cm)

Antenna- 3dBi

Power- +10dBm ~ +30dBm

Wireless WAN (Optional)

Network (WWAN)- EDGE/GPRS/GSM 900/1800 MHz;

850/900/1800/1900 MHz (optional) ,GPS (Optional)

Wireless

WiFi- muRata IEEE802.11b/g

Bluetooth- Class II, 3-5 M(Optional)

Camera (Optional)

automatic focus  5.0 mega pixels

Language

Chinese(GB2312 or GB18030),English,French,German, Latin, Russian, Arabic

Battery

rechargeable li-ion polymer battery (3.7 V/3,200 mAh)

Environmental

Operating temperature- -20 °C ~ 50 °C

Storage temperature- -25 °C ~ 70 °C

Humidity- 5% RH ~ 95% RH (non-condensing)

Dropping survive- 1.5-meter drop test on six sides (concrete floor, under operating temperature range)

Rolling survive- 1,000 times, 0.5 meter, rolling by six contact surfaces

Environmental sealing- IP64

Dimension

15.3 cm * 7.5 cm * 2.9 cm

Weight

330g
(included standard battery and scanners)

Optional Accessories

Standard- battery, charger/adapter, data cables, stylus, hand strap.

Optional:

Carrying Case

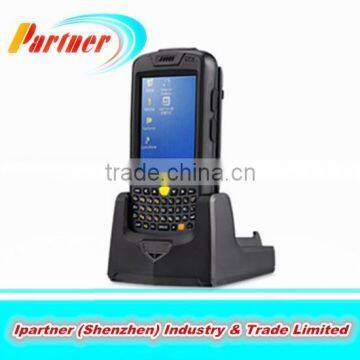

Cradle (docking station)
microSD Card
Pistol Grip (with battery)

1

Trade terms :

FOB,FCA,EXW,CIF,CNF

2

Payment way :

T/T, West Union, Money Gram, L/C

3

Payment condition :

30% deposit in advance, 70% balance before delivery

4

Shipping way :

DHL, EMS, FEDEX,UPS

5

Delivery time :

Sample order after ensure the payment in 2- 5 days,

Batch order could negotiate basic on quantity.

6

Package :

Neutral carton

7

Warranty :

1 year warranty for main device as well as 24 hours on line service to help you out.
