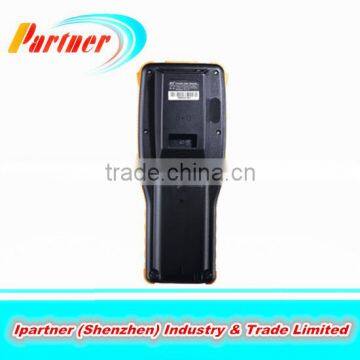

High quality Data collector handheld pos terminal PDA

Processing platform

Processor

ARM11 dominant frequency 800MHz

Operating system

Microsoft Windows CE6.0

Memory

2GB NAND Flash

System environment

System software development

Microsoft Windows CE SDK

System programming environment

Support C++/C#.NET/VB.NET / Visual Studio 2005/2008 or higher edition

Data acquisition

Barcode scanning

one-dimensional barcode scanning engine:Symbol SE955 / two-dimensional barcode scanning engine:Symbol SE4500

RFID reader-writer

LF/HF/UHF:125KHz~134.2KHz/13.56MHz/UHF (900M) optional

Wireless communication

WLAN

WIFI IEEE 802.1b/g

WWAN

GPRS(standard configuration,built-in aerial)/ CDMA/3G

WPAN

Bluetooth V2.0(safety certificate,data encryption)

Infrared communication

Read infrared smart meter data, applying to power meter reading system

GPS

positional accuracy less than 10m, rate accuracy less than 0.01m/s

Power management

Working power supply

3.7V 4000mAH Polymer batteries

Physical property

Display

3.5 inch color tangible TFT-LCD screen QVGA(240×320)

Keyboard

26 keys letters-digit shift backlit keyboard

Voice frequency

0.5Wspeaker

Measurement

195mm×78mm×43mm

Weight

<400g including standard battery package

Photographed function

5mega-pixel camera(2048*1536)

Expansion slot

Support 1 SIM card, 2 PSAM card and 1 Micro SD(TF) card

Caution

flashlight

Operating environment

Operating temperature

-20°C to +50°C

Storage temperature

-25°C to +70°C

Humidity

5%RH-95%RH(no condensation)

Construction Features

Conform to IP65 sealing standard

Anti-throw

Within operating temperature, 6 surfaces are able to withstand drop from 1.5m height

Rolling test

In the diameter range of 0.5m, the 6 surfaces undergo rolling test for 1000 times.

Anjljn b  xxyedxz ti-static

±8kVcontact discharge;±15kVair discharge

Extended interface

USB2.0; IO extended port(RS-232,RS-485 serial ports); infrared communication, Optical communication

Scanning parameter

Scan head/decode

Two-dimensional camera, laser aiming line, any one- or two-dimensional barcode, national postal code and OCR character are readable.

Standard fittings

USB data line,handwriting pen,leather sheath,portable charger,Serial Port Line(RS232,RS485)

Within Warranty

Since the data of delivery, 24 months free warranty is offered except for human damage.

Expiration of warranty

Warranty with charges (one time or one year warranty for your choose)

Product certificates

CCC standard certificate /EIP contamination control mark /GPRS and EVDO Network Access License of Telecommunication Equipment

1

Trade terms :

FOB,FCA,EXW,CIF,CNF

2

Payment way :

T/T, West Union, Money Gram, L/C

3

Payment condition :

30% deposit in advance, 70% balance before delivery

4

Shipping way :

DHL, EMS, FEDEX,UPS

5

Delivery time :

Sample order after ensure the payment in 2- 5 days,

Batch order could negotiate basic on quantity.

6

Package :

Neutral carton

7

Warranty :

1 year warranty for main device as well as 24 hours on line service to help you out.
