High Voltage 12KV Electrical Fuse Types
- 10000 Piece / Pieces per Month
- Qingdao port of China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | LJ | |
| Model Number | RW-6~35 |
Product Description
Specifications
electrical fuse types1.current limiting fuseCLFs
2.high voltage fuse for protecting the transformer
3.IEC Standard, ANSI.

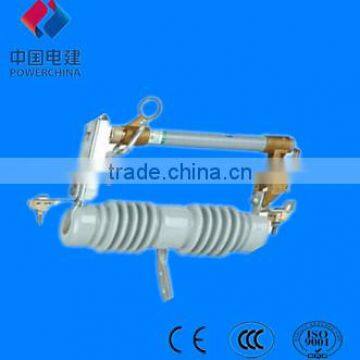

High Voltage 12KV Electrical Fuse Types
Description
The RW Type outdoor AC high-voltage fuse is suitable for the 6,10,35KV electric transmission line and Power transformer short-circuit and Circuit protection
ORDERING CODE
Technical parameters
Model | RW-6-10~35 Type | Power frequency dry test voltage (kV) | 54 |
Rated voltage(kV) | 6~35 | Power frequency temperature test voltage(kV) | 34 |
Rated current(A) | 2~400 | Full wave surge voltage (kV) | 75 |
Rated three-phase Breaking capacity(upper limit) | 30~400 | the conduction and joint part except for fuse tube is allow the temperature rise(kV) | 60°C |
megavolt-ampere(Lower limit) | 10~120 | Single-phase weight(kg) |
|
Service environment
1.the Ambient air temperature is 25 °C ~ +40°C
2.The Installation of the ground elevation is not more than 1500m
3.Atmospheric conditions: Allow to use in the open air, rain and snow caused by pollution condition ,But not allow to have the serious conductive dust or cause metal corrosion environment.
