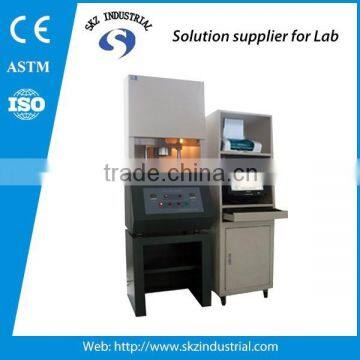

PC system Rheometer for porous rubber

PC system Rheometer for porous rubber

For measuring the unvulcanized rubber characteristics to identify the optimum cure time.

Characters:

1. Imported intelligent digital temperature controller, easy adjust settings, a wide range of temperature control, high control accuracy, stability

2. The analysis system Rotor-less using Windows XP operating system platform, graphical visualization software, a flexible data processing, modular VB language programming methods.

3. High degree of automation.

Standard:

ISO6502, T30,T60,T90.

Technical parameters:

1. Temperature range: room temperature ~ 300 °C

2. Warming time: ≤ 15min

3. Temperature Resolution: 0 to 200 °C: 0.1 °C

                       0 to 300 °C: 1 °C.

4. Temperature fluctuation: ≤ ± 0.5 °C (after feeding)

5. Torque range: 0N.m ~ 10N.m

6. Torque display resolution: 0.001N.m

7. Maximum test time: 120min (modify time during testing)

8. Swing angle: ± 0.5 ° (total amplitude of 1 °)

9. Body swing frequency: 1.7Hz ± 0.1Hz (102r/min ± 6r/min)

10. Power: AC220V ± 10% 50Hz

11. Dimension: 645mm × 580mm × 1300mm (L × W × H)

12. weight: 210kg

Control Software Features

1. Operating Software: English version;

2. Units of selection: kgf-cm, lbf-in, Nm, dN-m;

3. Test data: ML (Nm) minimum torque; MH (Nm) maximum torque; TS1 (min) initial curing time; TS2 (min) initial curing time; T10, T30, T50, T60, T90 curing time; Vc1, Vc2 vulcanization rate index;

4. Test curve: vulcanization curve, temperature curve of the upper and lower mold;

5. Time can be modified during testing.

6. Test data can be automatically saved;

7. Test data and curve can be displayed on a piece of paper, and available at any point on the mouse to select the curve values

8. Can add historical data for comparative analysis and print out.
