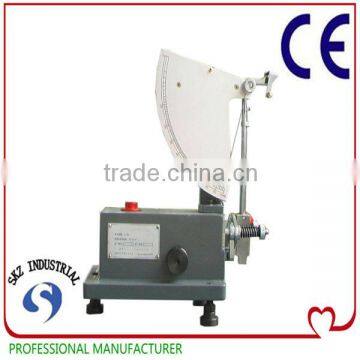

Rubber pendulum impact resiliency testing machine
US$ 500 - 1,000
/ Unit
1 Unit(Min. Order)
- Beijing/Qingdao
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SKZ | |
| Model Number | SKZ136 | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
Specifications
applied to measure the rebound resilience value of vulcanized rubber with hardness 30-85IRHD. ISO4662.Rubber pendulum impact resiliency testing machine
The instrument is the pendulum impact resiliency tester with energy 0.5J and applied to measure the resilience value of vulcanized rubber with hardness 30—85IRHD. It measures up to GB/T 1681 and ISO4662.
Technical parameters:
- diameter of impactor: 15mm
- specimen Dia.: 29mm×12.5mm
- impact weight: 0.35-0.1kg
- impact speed: 1.4+0.6m/s
- strain energy density: 351+112kJ/m³
- resilience value error: ±0.5%
- Size: 320mm×200mm×360mm
- Weight: 20kg
