TAPPI-UM403 Internal Resistance Strength Ply Bond Tester
- Beijing/Qingdao/Shenzhen
- Credit Card
You May Like
-
Electronic Lab Temperature Control Aluminum Heating Plate
-
ASTM D 5342 Board Taber Bending Stiffness Tester
-
Laboratory Electronic Heat Thermal Resistance Thermal Plate
-
Package Bag Carton Box Drop Impact Test Machine
-
ISO2248 Package Drop Test Equipment
-
Drop Test Packaging Drop Test Package Drop Tester
Product Details
| Place of Origin | Shandong, China | Brand Name | SKZ | |
| Model Number | SKZ123 | Power | Electronic | |
| Usage | Paper Testing Instrument |
Product Description

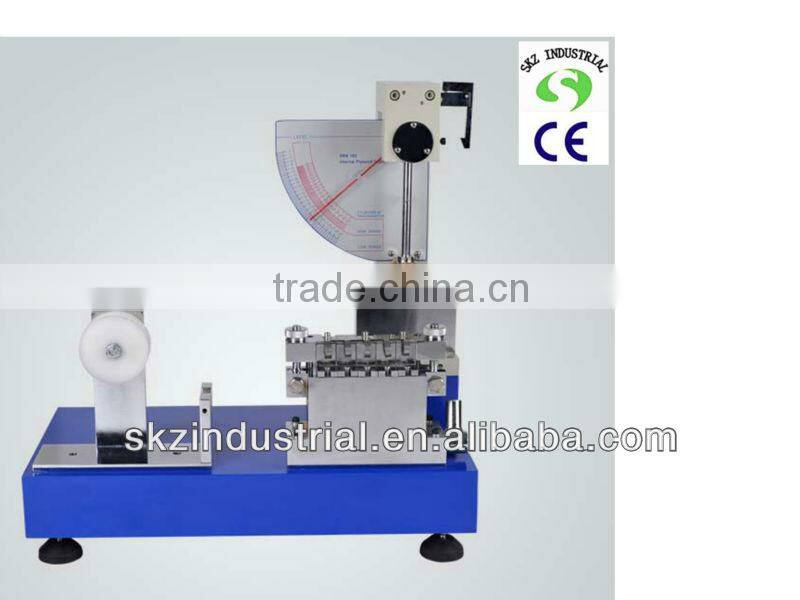

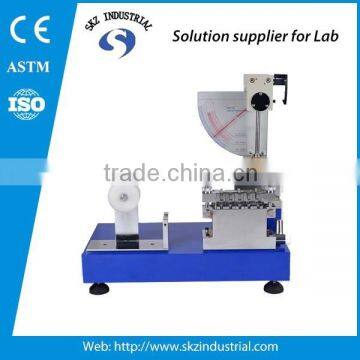

TAPPI-UM403 internal resistance strength ply bond tester

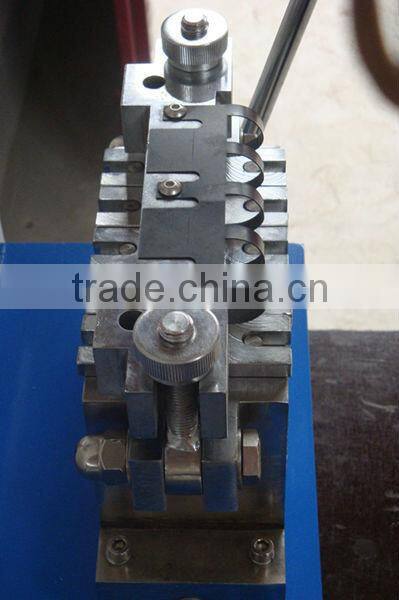

- Internal Bonding Strength Tester -Internal Plybond Tester is designed according to TAPPI-UM403. It is applicable for testing the Internal Bonding Strength of various paperboards. Test principle: the paperboard sample is impact in a certain angle and weight, the energy it has absorbed indicates the internal bonding strength. It could test five samples at one test. The test unit is optional: kg/cm, N/m, J.
Technical parameters:
Sample amount: 5 pcs.
Capacity: 0.25 / 0.5 kg/cm
Mini reading: 0.005 kg/cm
Impact angle: 90°
Dimension: 70 × 34 × 60 cm
Weight: 91 kg
Regarding to sample:
1) Sample location: make sample from the scattering location in one batch material.
2) Sample size: 25.4mm width, 127mm length.
3) Sample quantity: 5 pieces in the same material
4) Sample normal condition: keep the sample at least 24 hours in the temperature: 23°C±2°C, relative humidity 60±5%.
