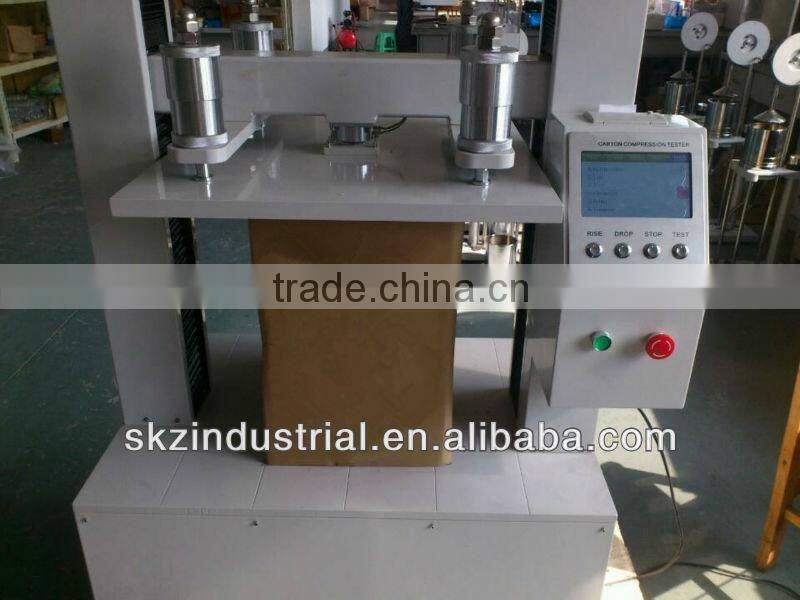

It is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton. Its every parameters and performance conform to the standards of ISO 2234-1985 , ISO 2233 -1986, ISO 2206, ISO12048-1994.ISO 2874-1985, ISO2872-1985.

Technical characters:

1.Test items: Compression Test, Stacking Test and Press Standard Test

2.Adopt advanced accurate sensor and foreign high capable motor, unite advanced measurement and control technology to get speed accuracy and precision measurement.

3.Gentle mechanical transmission, multi-level security protection function.

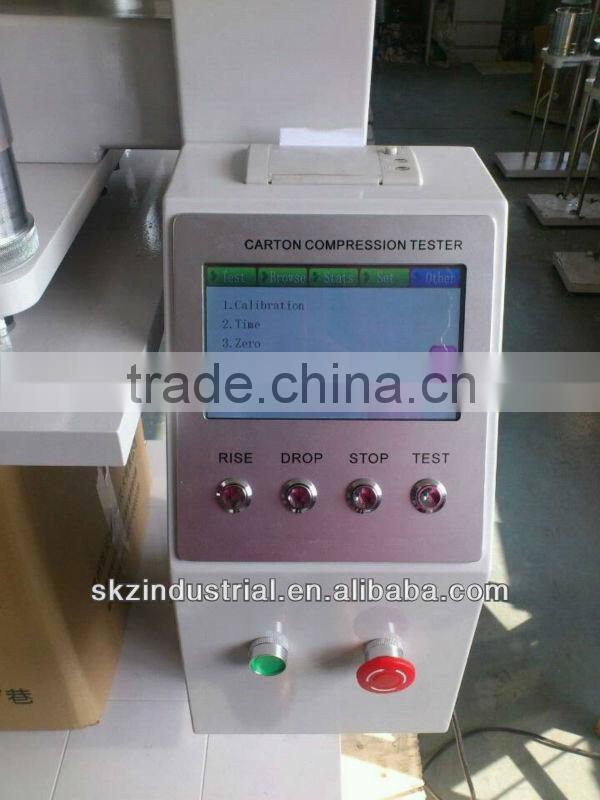

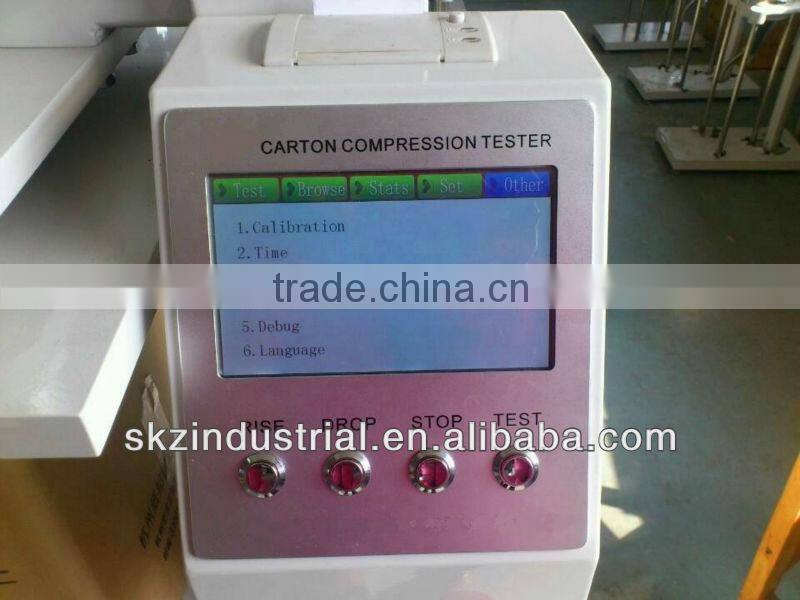

4.Touch screen display, show its dynamic curves, print out quietly.

Technical parameter:

Test range: 0—20KN; Compression range: 550(L) ×550(W) ×700(H) mm

Test range: 0—20KN; Compression range: 800(L) ×800(W) ×1000(H) mm

Test range: 0—50KN; Compression range: 1200(L) ×1200(W) ×1500(H) mm

1. Speed: 12.7mm/min

2. Accuracy: ±1%

3. Deformation resolution: 0.1mm

4. Power: AC220V, 50HZ, 3A, 750W.

5. Resolving power(the minimum reading figure): 1N

6. Relative error of display figure:±2%

7. Relative alteration degree of display error:≤2%

8. Result error: 0.1%

9. Surveying veracity of tracking distortion: ±0.1mm

10. Speed range of different pressure :(1~40)mm/min

11. Returning speed in the test ( the speed up and down with manual manipulation ): (1~60)mm/min

12. The relative waving speed of planned-stacking-load test: ±4%

13. The tracking and pressure speed of stacking load test: 2mm/min
