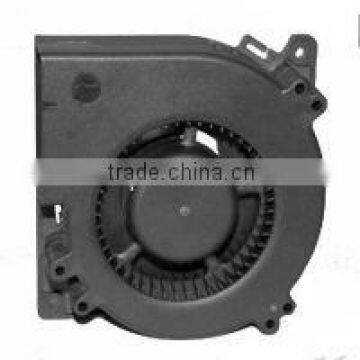

4.7 Inch 12v 24v Plastic dc Blower Fan for Car 120*120*32mm
US$ 1 - 7
/ Piece
500 Pieces(Min. Order)
- shenzhen
You May Like
-
AC Centirfugal Blower Fan 220v / AC Blower Fan Diameter 160mm
-
48VDC Radiator Cooling Fans With Waterproof IP55 172*51
-
3 Inch High Flow Motor Fan 12v Waterproof Ip55 or Ip68 80*80*15
-
China Industrial Fan 220v 80*80*38mm
-
Generator Radiator Fan 172x51
-
2.5 Inch Cooling Radiator Fan AC 110/120V 60*60*30mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | MX/OEM | |
| Model Number | MX12032GBH1 | Application | Fan Blower | |
| Type | Centrifugal Blower | Pressure | High Pressure | |
| Power Source | Electric Blower | Rated Power | 8.16W | |
| Rated Voltage | 12V,24V |
Product Description
4.7 inch 12v 24v plastic dc blower fan for car 120*120*32mm
General specification:
| Frame | plastic(UL94v-0) |
| Impeller | plastic(UL94v-0) |
| Bearing type | Dual Ball Bearing |
| Leadwire | UL1007AWG#26 or Equivalent (+)Red(-) Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
Specifications:
| Model | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Current Amp (Amp) | Rated Input Power (Watt) | Speed (rpm) | Max Air Flow (CFM) | Max Static Pressure (Inch-H2o) | Noise Level (dB-A) | Weight (g) |
| MX12032GBH1 | 12 | 7.0 to 13.8 | 0.73 | 8.76 | 2700 | 32.49 | 1.08 | 49 | 278 |
| MX12032GBM1 | 12 | 7.0 to 13.8 | 0.52 | 6.24 | 2400 | 29 | 0.84 | 44 | 278 |
| MX12032GBH2 | 24 | 14.0 to 27.6 | 0.43 | 10.32 | 2700 | 32.49 | 1.08 | 49 | 278 |
| MX12032GBM2 | 24 | 14.0 to 27.6 | 0.34 | 8.16 | 2400 | 29 | 0.84 | 44 | 278 |
