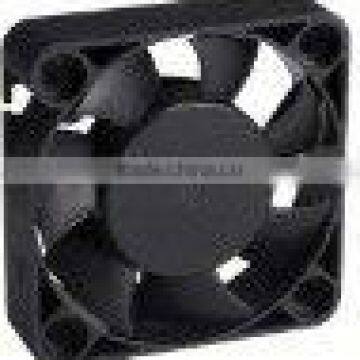

12V 40mm Radiator fan High Speed and Low Niose

FOB Price

USD $1 - $15 / Piece

500 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Discription of YM2404PFS(B)3 radiator fan

Size:40 X 40 X10mm

Fan Features:

Size(mm)	Model	Rated voltage (v)	Operating Voltage Range(v)	Current amp (Amp)	Rated Input Power Watt	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure (Inch-H2o)	Noise Leve (dB-A)	Weight (g)
40 40 X10	YM2404PFS(B)3	24	14.0to27.6	0.03	0.72	5500	5.72	0.10	25	16.00

Detail introduction

1. Expexted life

1). Ball Bearing 50,000 hours(40⁰C)

2). Sleeve Bearing 30,000 hours(40⁰C)

2. Allowable Ambient Temperature Range:

1). -10⁰C~+70⁰C (Operating)

2). -40⁰C~+70⁰C (Storage)

3). non-condensing environment

General Specification

Model	YM1204PFS(B)3
Frame	Plastic(UL94V-0)
Impeller	Plastic(UL94V-0)
Bearing Type	Sleeve Bearing & Bual Ball Bearing
Leadwire	UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor	Impedance Protected and Reverse Polarity Protected
