Home > Products > Cross flow fan > dc Cross Flow Fan High Flow Fan 30*90mm

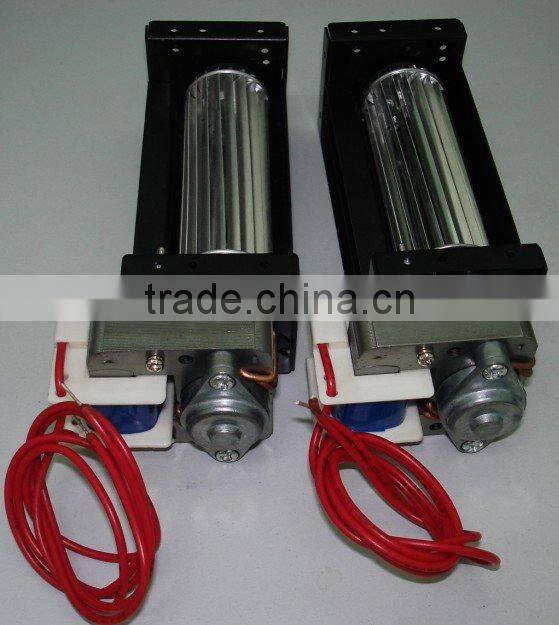

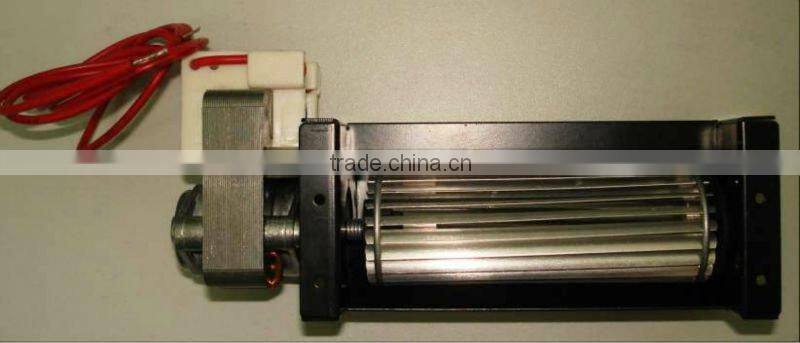

dc Cross Flow Fan High Flow Fan 30*90mm
US$ 5 - 10
/ Piece
500 Pieces(Min. Order)
- shenzhen
- Money Gram
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, cooling fan | Place of Origin | Guangdong, China | |
| Brand Name | OEM | Model Number | LD30090A24 | |
| Power | 3.36 | Voltage | 24V | |
| Air Volume | 22CFM | Speed | 3200RPM | |
| Certification | CE, CCC, UL, ROHS, Other, UL, CE, CE, CCC, UL, ROHS, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
1.we supply cross flow fan,2.motor protection,
3.low noise and long life expectancy,
4.ISO9000, UL ,CE, RoHS, TUV approved
Cross flow fan Ø30*90mm
General Specifications:
Expected Life:
Ball Bearing 50,000 hours(40°c)
Specifications:

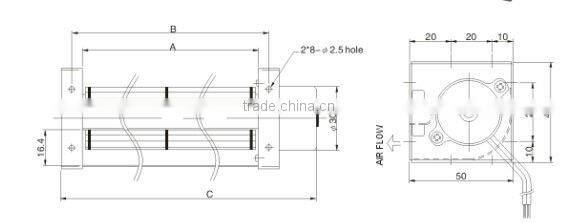

| Model | Size(mm) | Rated voltage (v) | Rated Current (A) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | CFM | Noise Leve (dB-A) | Weight (g) | ||
| A | B | C | |||||||||
| LD30090A12 | 98 | 108 | 132 | 12 | 0.15 | 3200 | 1.9 | 0.6 | 22 | 35 | 180 |
| LD30090A24 | 24 | 0.14 | 38 | ||||||||
| LD30150A12 | 160 | 170 | 194 | 12 | 0.16 | 3100 | 1.8 | 0.8 | 28 | 35 | 210 |
| LD30150A24 | 24 | 0.15 | 37 | ||||||||
| LD30190A12 | 198 | 208 | 232 | 12 | 0.20 | 2900 | 1.8 | 1.0 | 35 | 35 | 230 |
| LD30190A24 | 24 | 0.16 | 38 | ||||||||
| LD30290A12 | 300 | 310 | 338 | 12 | 0.22 | 2600 | 1.5 | 1.3 | 46 | 36 | 290 |
| LD30290A24 | 24 | 0.20 | 39 | ||||||||
