Home > Products > DC fan > DC ventilator fan 80x80x32mm / Waterproof Fan

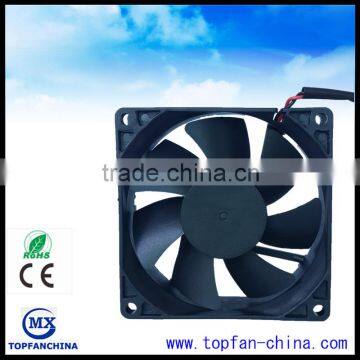

DC ventilator fan 80x80x32mm / Waterproof Fan

FOB Price

USD $3 - $8 / Piece

500 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port SHENZHEN
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Mounting	Other, ACCORDING YOUR DEMANDS
Blade Material	Plastic	Place of Origin	Guangdong, China
Brand Name	Topfan/OEM/ODM	Model Number	MX8032AB(S)U2
Voltage	24V, 12/24/48V	Power	19.2W
Air Volume	79.7CFM	Speed	6500RPM
Certification	CE, ROHS, UL	After-sales Service Provided	No overseas service provided

Product Description

DC ventilator fan 80x80x32mm

General Specifications

Frame and Impeller:		Plastic (94V-0),PBT
Bearing Type:		Sleeve bearing&Ball bearing
Function Range:		FG RD PWM IP58 IP68
Leadwire:		Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage:		12V 24V 48V
Tempetature Range:		–20℃ to +70℃
Motor:		Impedance Protected and Reverse Polarity Protected

Expected life

Ball Bearing..................................................50,000 hours (40°C)

Sleeve Bearing..............................................30,000 hours (40°C)

Allowable Ambient Temperature Range

1)..........................................................-10⁰C~+70⁰C (Operating)

2)..............................................................-40⁰C~+70⁰C (Storage)

3)......................................................non-condensing environment

DC Axial Fan 80*80*32mm 8032

,,Shipment

1. FOB Shenzhen or HongKong (mass production)

2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)

<<<More details can be discussed.>>>

Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Model	Bearing Type	Rated Voltage	Operating Voltage	Input Current	Input Power	Speed	Max Air Flow		Max Static Pressure		Noise	Weight
Part No.	B.S	VDC	VDC	Amp	Watt	RPM	CFM	m³/min	Inch-H₂O	pa	dB-A	g
MX8032AB(S)U1	B.S	12	7.0-13.8	1.50	18.00	6500	79.70	2.26	0.84	208.39	51.00	95.00
MX8032AB(S)H1	B.S	12	7.0-13.8	0.90	10.80	5500	67.37	1.91	0.58	144.45	45.00	95.00
MX8032AB(S)M1	B.S	12	7.0-13.8	0.60	7.20	4500	54.99	1.56	0.41	101.89	40.00	95.00
MX8032AB(S)L1	B.S	12	7.0-13.8	0.40	4.80	3500	43.01	1.22	0.25	62.66	34.00	95.00
MX8032AB(S)U2	B.S	24	14.0-27.6	0.80	19.20	6500	79.70	2.26	0.84	208.39	51.00	95.00
MX8032AB(S)H2	B.S	24	14.0-27.6	0.50	12.00	5500	67.37	1.91	0.58	144.45	45.00	95.00
MX8032AB(S)M2	B.S	24	14.0-27.6	0.30	7.20	4500	54.99	1.56	0.41	101.89	40.00	95.00
MX8032AB(S)L2	B.S	24	14.0-27.6	0.20	4.80	3500	43.01	1.22	0.25	62.66	34.00	95.00
MX8032AB(S)U4	B.S	48	28.0-56.0	0.50	24.00	6500	79.70	2.26	0.84	208.39	51.00	95.00
MX8032AB(S)H4	B.S	48	28.0-56.0	0.30	14.40	5500	67.37	1.91	0.58	144.45	45.00	95.00
MX8032AB(S)M4	B.S	48	28.0-56.0	0.20	9.60	4500	54.99	1.56	0.41	101.89	40.00	95.00
MX8032AB(S)L4	B.S	48	28.0-56.0	0.10	4.80	3500	43.01	1.22	0.25	62.66	34.00	95.00

,,Payment

T/T and Western Union

1. The payment for the high value sample will be charged.

2. The payment for the low value sample is free, but the freight should be paid by you.

,,Delivery Time

Generally, 500~1000pics 10 days after confirming the PI

,,Our Company

Web:

Alibaba: http://topfan-china.en.china.cn

Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others.

Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
