Home > Products > Blower fan > 5v/12v/24v 40*52*10mm high-temperature dc blower fan

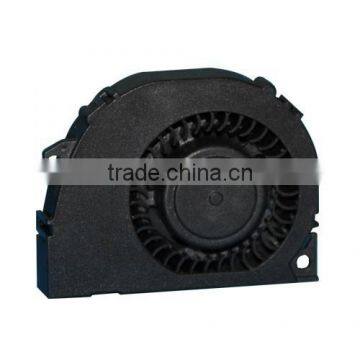

5v/12v/24v 40*52*10mm high-temperature dc blower fan
USD $2 - $6
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, cooling fan | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX4010GB(S)H5 | |
| Power | 1.15W | Voltage | 5V/12V/24V | |
| Air Volume | 3.06CFM | Speed | 5000RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description
5v/12v/24v 40*52*10mm high-temperature dc blower fan
Product Description
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Sleeve Bearing and Dual Ball Bearing |
Leadwire | UL1571AWG#28 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected life:
1.ball bearing 50,000 hours(40 °c)
2.sleeve bearing 30,000 hours(40 °c)
Allowable ambient temperature range:
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX4010GB(S)H5 | B.S | 5 | 3.5-5.5 | 0.23 | 1.15 | 5000 | 3.06 | 0.09 | 0.29 | 72.57 | 27 | 21 |
| MX4010GB(S)M5 | B.S | 5 | 3.5-5.5 | 0.20 | 1.00 | 4500 | 2.64 | 0.07 | 0.21 | 52.37 | 25 | 21 |
| MX4010GB(S)L5 | B.S | 5 | 3.5-5.5 | 0.16 | 0.80 | 4000 | 2.23 | 0.06 | 0.15 | 37.85 | 23 | 21 |
| MX4010GB(S)U1 | B.S | 12 | 7.0-13.8 | 0.18 | 2.16 | 5500 | 3.12 | 0.09 | 0.31 | 77.08 | 29 | 21 |
| MX4010GB(S)H1 | B.S | 12 | 7.0-13.8 | 0.15 | 1.80 | 5000 | 3.06 | 0.09 | 0.29 | 72.57 | 27 | 21 |
| MX4010GB(S)M1 | B.S | 12 | 7.0-13.8 | 0.12 | 1.44 | 4500 | 2.64 | 0.07 | 0.21 | 52.37 | 25 | 21 |
| MX4010GB(S)L1 | B.S | 12 | 7.0-13.8 | 0.10 | 1.20 | 4000 | 2.23 | 0.06 | 0.15 | 37.85 | 23 | 21 |
| MX4010GB(S)U2 | B.S | 24 | 14.0-27.6 | 0.10 | 2.40 | 5500 | 3.12 | 0.09 | 0.31 | 77.08 | 29 | 21 |
| MX4010GB(S)H2 | B.S | 24 | 14.0-27.6 | 0.07 | 1.68 | 5000 | 3.06 | 0.09 | 0.29 | 72.57 | 27 | 21 |
| MX4010GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.05 | 1.20 | 4500 | 2.64 | 0.07 | 0.21 | 52.37 | 25 | 21 |
| MX4010GB(S)L2 | B.S | 24 | 14.0-27.6 | 0.03 | 0.72 | 4000 | 2.23 | 0.06 | 0.15 | 37.85 | 23 | 21 |
