Home > Products > Blower fan > 4.7 inch waterproof centrifugal blower fan 120x120x32mm

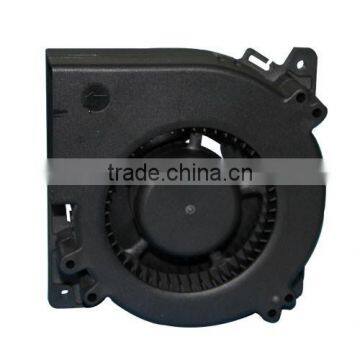

4.7 inch waterproof centrifugal blower fan 120x120x32mm
USD $2 - $5
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Other, cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | ODM/OEM | Model Number | MX12032GB(S)H1 | |
| Voltage | 12v | Power | 24w | |
| Air Volume | 41.20cfm | Speed | 3500rpm | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description
4.7 inch waterproof centrifugal blower fan 120x120x32mm
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Dual Ball Bearing |
Leadwire | UL1007AWG#26 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected Life:
Ball Bearing 50,000 hours(40°c)
Allowable Ambient Temperature Range:
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX12032GB(S)H1 | B.S | 12 | 7.0-13.8 | 2.00 | 24.00 | 3500 | 41.20 | 1.17 | 1.85 | 461.99 | 57.00 | 278 |
| MX12032GB(S)M1 | B.S | 12 | 7.0-13.8 | 1.00 | 12.00 | 3000 | 35.44 | 1.00 | 1.17 | 291.94 | 51.00 | 278 |
| MX12032GB(S)L1 | B.S | 12 | 7.0-13.8 | 0.70 | 8.40 | 2500 | 30.79 | 0.87 | 0.83 | 207.90 | 45.00 | 278 |
| MX12032GB(S)H2 | B.S | 24 | 14.0-27.6 | 1.00 | 24.00 | 3500 | 41.20 | 1.17 | 1.85 | 461.99 | 57.00 | 278 |
| MX12032GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.70 | 16.80 | 3000 | 35.44 | 1.00 | 1.17 | 291.94 | 51.00 | 278 |
| MX12032GB(S)L2 | B.S | 24 | 14.0-27.6 | 0.40 | 9.60 | 2500 | 30.79 | 0.87 | 0.83 | 207.90 | 45.00 | 278 |
