12 Volt DC Blower Fan with PWM / 3 Inch Car Fan 75mm*75mm*30mm
- shenzhen
- Credit Card
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, cooling fan | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | MX7530GB(S)H1 | |
| Power | 7.20W | Voltage | 12V | |
| Air Volume | 15.64cfm | Speed | 4500rpm | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description

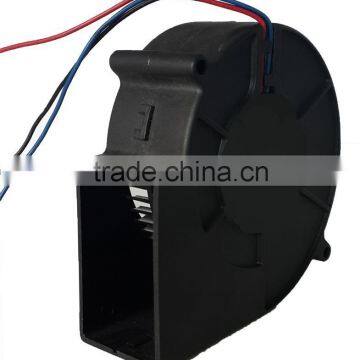

75mm 12v blower fan / 3 inch snail fan / dc centrifugal blower fan
Applications
1. Ventilation Equipment & System
2. Heating Equipment & System
3. Air Conditioner
4. Refrigeration equipment
5. MDBS(Mobile Data Base Station)
6. Telecom power supply station
Description:
1. High speed , Middle speed, Low speed
2. Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
3. 5 blades 7 blades or 9 blades
4. 5V DC 12V DC 24V DC or 48V DC
5. Ball bearing or Sleeve bearing or Hydraulic bearing
6. Terminal or Lead wire
7. Waterproof explosion proof or high proof are can be satisfied.
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Sleeve Bearing and Dual Ball Bearing |
Leadwire | UL1007AWG#24 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected life:
1.ball bearing 50,000 hours(40 °c)
2.sleeve bearing 30,000 hours(40 °c)
Specifications:
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX7530GB(S)H1 | B.S | 12 | 7.0-13.8 | 0.60 | 7.20 | 4500 | 15.64 | 0.44 | 1.06 | 263.31 | 51 | 69 |
| MX7530GB(S)M1 | B.S | 12 | 7.0-13.8 | 0.45 | 5.40 | 4000 | 13.67 | 0.39 | 0.81 | 201.13 | 46 | 69 |
| MX7530GB(S)L1 | B.S | 12 | 7.0-13.8 | 0.35 | 4.20 | 3500 | 12.25 | 0.35 | 0.60 | 149.55 | 40 | 69 |
| MX7530GB(S)H2 | B.S | 24 | 14.0-27.6 | 0.30 | 7.20 | 4500 | 15.64 | 0.44 | 1.06 | 263.31 | 51 | 69 |
| MX7530GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.25 | 6.00 | 4000 | 13.67 | 0.39 | 0.81 | 201.13 | 46 | 69 |
| MX7530GB(S)L2 | B.S | 24 | 14.0-27.6 | 0.20 | 4.80 | 3500 | 12.25 | 0.35 | 0.60 | 149.55 | 40 | 69 |
