axial cooling fan 200mm for machinery
USD $1 - $15
/ Piece
500 Pieces(Min.Order)
- 700 Piece / Pieces per Month
- Hongkong
- T/T
You May Like
Product Details
| Electric Current Type | Other, DC/AC | Mounting | Other, cooling fan | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | topfan | Model Number | YM | |
| Voltage | 24V,48V | Power | 28.8W,43.2W.38.4W,36.00W | |
| Air Volume | 532.00CFM/595.00CFM | Speed | 2500rpm,2800rpm | |
| Certification | CE, Other, UL, ROHS, CE,YUV,UL,ROHS,ISO9000 |
Product Description
Specifications

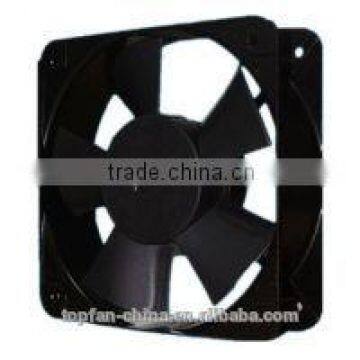

New axial cooling fan 200mm for machineryNew smart cooling fan
Automatic temperature control
CE/ROHS/TUV/UL.ISO9001 passed
Discription of New axial cooling fan 200mm for machinery:
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 200*200*60 | YM2420AXB1 | 24 | 14.0 to 27.6 | 1.6 | 38.4 | 2800 | 595 | 0.82 | 65 | 1031.4 |
| YM2420AXB2 | 24 | 14.0 to 27.6 | 1.5 | 36 | 2500 | 532 | 0.75 | 58 | 1031.4 | |
| YM4820AXB1 | 48 | 28.0 to 56.0 | 0.9 | 43.2 | 2800 | 595 | 0.82 | 65 | 1031.4 | |
| YM4820AXB2 | 48 | 28.0 to 56.0 | 0.6 | 28.8 | 2500 | 532 | 0.75 | 58 | 1031.4 |
Detail introduction
1. Expexted life
1). Ball Bearing 50,000 hours(400C)
2. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
General Specification
| Frame | Plastic(UL94V-0) |
| Impeller | Plastic(UL94V-0) |
| Bearing Type | Bual Ball Bearing |
| Leadwire | UL1007AWG24 or Equivalent (+): Red (-0 Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
