Home > Products > AC FAN > 150X150X51mm 110/120V 220v/240v ac waterproof fan IP54 IP55 IP58 IP68 Quality Choice

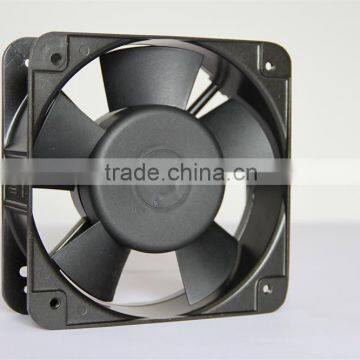

150X150X51mm 110/120V 220v/240v ac waterproof fan IP54 IP55 IP58 IP68 Quality Choice
USD $5 - $10
/ Piece
100 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Cast Iron | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | MX15051ABH11 | |
| Voltage | 110/120V | Power | 30/37W | |
| Air Volume | 200/187cfm | Speed | 2500/2100rpm | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV | After-sales Service Provided | No overseas service provided |
Product Description
150X150X51mm 110/120V 220v/240v ac waterproof fan IP54 IP55 IP58 IP68
Expected Life:
1.Ball Bearing 50,000 hours(40°c)
2.Sleeve Bearing 30,000 hours(40°c)
Allowable Ambient Temperature Range
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX15051ABH11 | B | 110/120 | 50/60 | 0.44/0.46 | 30/37 | 2500/2100 | 200/187 | 5.4/6.0 | 0.55/0.50 | 53/48 | 850 |
| MX15051ABH22 | B | 220/240 | 50/60 | 0.26/0.28 | 44/35 | 2500/2200 | 200/190 | 5.4/6.0 | 0.55/0.50 | 53/48 | 850 |
| MX15051ABH38 | B | 380-400 | 50/60 | 0.15/0.13 | 38/35 | 2500/2200 | 200/190 | 5.4/6.0 | 0.55/0.50 | 53/48 | 850 |
