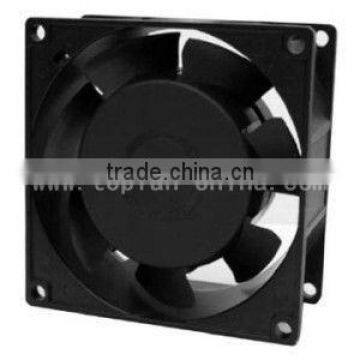

3 inch fan ac 80*80*38mm
USD $4 - $7
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Stainless Steel | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | M075BA1H | |
| Voltage | 110/120V | Power | 16/10 | |
| Air Volume | 32 | Speed | 2300/2800 | |
| Certification | Other, UL, CE, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
cooling fan (80*80*38mm):motor protection
high static pressure
low noise and long life expectancy
good quality and price.
AC motor cooling fan 80*80*38mm
Expected Life:
1.Ball Bearing 50,000 hours(40°c)
2.Sleeve Bearing 30,000 hours(40°c)
Allowable Ambient Temperature Range
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Size(mm) | Model | Beaing system | Rated voltage (v) | Freq(HZ) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow(CFM) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 80*80*38 | M075BA1H | Ball | 110/120 | 50/60 | 0.15/0.11 | 16/10 | 2300/2800 | 29/33 | 0.65/0.82 | 0.11/0.17 | 31/35 | 290 |
| M075BA2H | Ball | 220/240 | 50/60 | 0.09/0.07 | 15/11 | 2300/2800 | 29/33 | 0.65/0.82 | 0.11/0.17 | 31/35 | 290 |
