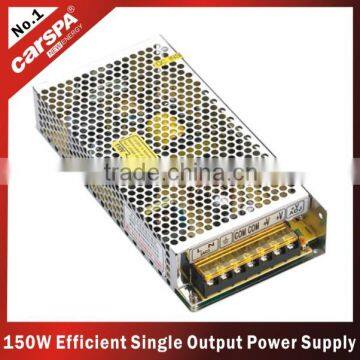

150W NES series efficient single switching power supply (NES-150W)

Model

NES-150-5

NES-150-12

NES-150-15

NES-150-24

NES-150-48

Output

DC voltage

5V

12V

15V

24V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated current

30A

12.5A

10A

6.5A

3.2A

Current range

0~30A

0~12.5A

0~10A

0~6.5A

0~3.2A

Rated power

150W

150W

150W

156W

153.6W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

200mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

Input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

3A/115VAC,2A/230VAC

efficiency

80%

83%

83%

84%

86%

Inrush current

Cold start current 30A/115VAC,45A/230VAC

Leakage current

< 2mA/240VAC

Protection

overload

Rated output power110%~150%  start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

54.8~56.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

Environment

Working temp,humidity

-20°C~+60°C,20%~90%RH

Storagetemp,humidity

-40°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fit standard

Safety standard

Fit UL1012

EMC standard

EN55022,CLASSA

Others

Dimension

199*98*38mm (L*W*H)

Weight/packing

0.6kg/30pcs/19kg/0.034 m³/1.2CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
