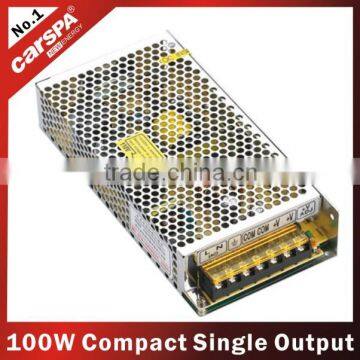

HS Series Compact Single Switching Power Supply 100W

Model

HS-100-5

HS-100-12

HS-100-15

HS-100-24

HS-100-36

HS-100-48

Output

DC voltage

5V

12V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

20A

8.3A

6.7A

4.2A

2.8A

2A

Current range

0~20A

0~8.3A

0~6.7A

0~4.2A

0~2.8A

0~2A

Rated power

100W

99.6W

100.5W

100.8W

100.8W

96W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

150mvp-p

150mvp-p

180mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%

Input

Voltage range

90~132VAC/180~264VAC(selected by switch),254~373VDC

frequency

47~63HZ

AC current

2.4A/115VAC,1.2A/230VAC

efficiency

79%

83%

83%

85%

85%

86%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 3.5mA/240VAC

Protection

overload

Rated output power115%~150%  start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

Environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fit standard

Safety standard

Fit UL1012

EMC standard

EN55022,CLASSA

Others

Dimension

159*97*38mm (L*W*H)

Weight/packing

0.48kg/45pcs/22.5kg/0.041 m³/1.45CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
