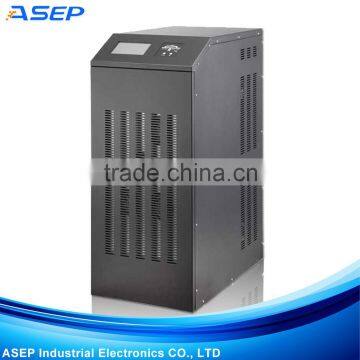

Pure Sine Wave Output Lcd Touch Screen Low Frequency Online 10 Kva UPS
- 50000 Unit / Units per Month
- Foshan / Shenzhen Port
- Credit Card
You May Like
-
Network Equipments Low Frequency Online 30 Kva Ups
-
Network Equipments Low Frequency Online Saudi Arabia 20Kva UPS Price
-
Network Equipments 100Va Low Frequency Power Supply Online Ups
-
Power Supply 100Kva Online Low Frequency Best Karachi Home UPS
-
Low Frequency Online LCD TV Elevator 220V Emergency Power Supply
-
Inverter Online Double Conversion Online Low Frequency UPS 200Kva
Product Details
Place of Origin | Guangdong, China | Brand Name | ASEP | |
Model Number | AIS10KVA | Phase | Three Phase | |
Protection | Other, over / under input voltage, over / under output voltage, over-curren | Weight | 200KG~300KG | |
Output Voltage | 220/380VAC±1% | Type | On-line | |
Application | Other, Medium and small size data centre; Medium and small size industrial co |
Product Description
Pure Sine Wave Output Lcd Touch Screen Low Frequency Online 10 Kva UPS
Item No. | AIS10KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA |
Series Name | Industrial Online Series | |||||||||
Rated Capacity | 8KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 144KW | 180KW |
Inverter | ||||||||||
Input Phases | RST+L+N | |||||||||
Nominal Output Voltage | 220/380VAC±1% | 380VAC±1% | ||||||||
Nominal Output Frequency | 50/60Hz±0.5%(Battery mode) | |||||||||
Power Factor | 0.8/0.9 | |||||||||
Frequency Stability (synchronized) | <±0.5 | |||||||||
Frequency Stability (non-synchronized) | <±2% | |||||||||
Crest Factor | 3:01 | |||||||||
Output Waveform | Sine Waveform | |||||||||
THD (Total Harmonic Distortion) | Linear load<3%;Non linear load<5% | |||||||||
Fluctuation Voltage for Unstable Load | <±4% | |||||||||
Transient Recovery Time | <10MS | |||||||||
On-Load Voltage | Balance:<±1% Unbalance:<±5% | |||||||||
Overload Capability | 120% overload lasting 30Mins,150% overload lasting 1min. | |||||||||
Inverter Efficiency, 100% on load | >93 | >95 | ||||||||
Bypass | ||||||||||
Input Phases | RST | |||||||||
Nominal Output Voltage | 300VAC±15% | |||||||||
Nominal Output Frequency | 50/60Hz±10% | |||||||||
Transfer Time | 0MS | |||||||||
Physical | ||||||||||
Shipping Weight | 200KG~300KG | 400KG~500KG | 650KG | 800KG | 980KG | 1300KG~1550KG | ||||
Shipping Width (mm) | 560 | 660 | 1070 | 900 | 1540 | 1420 | ||||
Shipping Height (mm) | 1140 | 1145 | 1650 | 1440 | 1570 | 1780 | ||||
Shipping Depth (mm) | 700 | 795 | 900 | 1100 | 890 | 860 | ||||
Noise (within 1 m) | 53~68db | |||||||||
Cable Placement | bottom or back | |||||||||
Color | Black or White | |||||||||
System | ||||||||||
Communication Interface | RS232, RS485,Dry contact,Intelligent slot | |||||||||
Cooling Method | Forced ventilation | |||||||||
Protection Level | IP20 | |||||||||
MTBF | 300,000 hours | |||||||||
Environmental | ||||||||||
Operating Temperature | 0℃~40℃ | |||||||||
Operating Relative Humidity | 0%~80% | |||||||||
Operating Altitude | >1000M(1% Power dcreased in every 100M increased. Maximum 4000M) | |||||||||
Conformance | ||||||||||
Regulatory Approvals | ISO9001 | |||||||||
Standard Warranty | 1 year |
Features:
ASEP’s Industrial Online uninterruptible power supplies are specially designed to support all kinds of precise instruments, large equipments data center and production machines etc. , preventing from any unstable power or interruption affecting their normal work performance.
- DSP control technique is applied;
- Data displayed on wide, clear and touch-sensitive LCD screen;
- Code setting available;
- ECO friendly design increases power efficiency up to 97%;
- Charging current can be adjusted manually
- Adaptability of 100% unbalanced load;
- Advanced technique design includes silicon controlled rectifier, static transfer switch, and output isolation;
- Protection against over/lower input voltage, over/lower output voltage, over-current, over-heat;
- N+X redundancy;
Product Advantages
After-sales service
A. Remote Technical Support (those with WIFI module installed);
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided.
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
If you have any questions, plz feel free to contact us.
