Home > Products > Offline UPS > 500va Offline Ups With AVR Protection

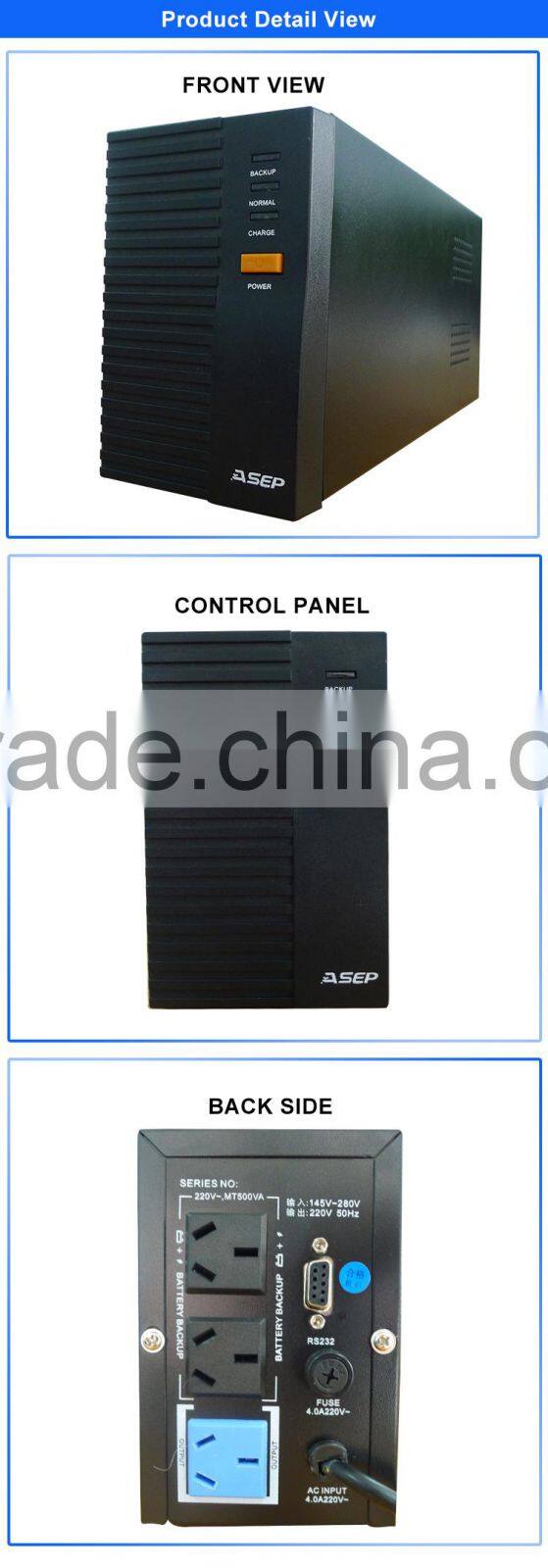

500va Offline Ups With AVR Protection

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Foshan / Shenzhen Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ASEP
Model Number	K500	Phase	Single Phase
Protection	Other, Providing protection of surge absorption, overload, and short circuit	Weight	2.8KG
Output Voltage	220V	Type	Standby
Application	Other, PC; POS machine Tax control machine; micro terminal equipments

Product Description

500va offline ups with AVR Protection

Item No.	K500	K1000
Series Name	K Series
Rated Capacity (with voltage regulated)	500VA/300W	1000VA/600W
Input
Nominal Input Voltage	175VAC-268VAC
Fluctuating range	±5%
Nominal Input Frequency	(45-50)Hz±1Hz
Output
Nominal Output Voltage	220x(1)VAC
Fluctuating range	±10%
Nominal Output Frequency	50Hz±1Hz
Batteries & Runtime
Battery Type	VRLA
Battery mounting	Enclosed battery
Expected Battery Life (years)	1 year~ 3 years
Battery Capacity	4AHx1PC
Battery Voltage	12V
Backup Time	≥5Mins(Halfload)
Transfer Time	≤ 7ms
Physical
Shipping Weight	2.8KG	6.5KG
Shipping Width	400mm	373mm
Shipping Height	200mm	220mm
Shipping Depth	145mm	150mm
Sockets number	2 pcs	3 pcs
Color	Black
Environmental
Operating Temperature	0-40℃
Operating Relative Humidity	10%-90%
Conformance
Regulatory Approvals	ISO9001
Standard Warranty	1 year

Features:

ASEP’s off-line series (including TG,K, MT series) uninterruptible power supplies are your optimal choice of protection against data loss and devices damage due to power surges and power-off.

Compact assembly makes our devices portable and energy-saving.
Output in non-sine waveform, with AVR to stabilize and using PWM to modulate the pulse spike, our off-line UPS have the transfer time less than 7ms.
Providing protection of surge absorption, overload, and short circuit, they can be adaptable to environment of unstable power supply.

Details

After-Sales Service

After-sales service

A. Remote Technical Support (those with WIFI module installed);

With WIFI module installed, we can help you monitor the performance of your machine.

B. Free training and Consultancy

Apart from the user manual, free personnel training is offered at our factory.

C. 2% Back-up material for main parts is provided.

For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.

D.One Year Warranty

If you have any questions, please feel free to contact us.

Packaging

Production Flow

Shipping
