Home > Products > Tungsten Carbide End Mill Drill Bits > Tungsten Carbide End Mill for Milling Machine
Tungsten Carbide End Mill for Milling Machine
- Zhuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Hongdalihua | |
| Model Number | LHCBEM0010 | Material | Other, Carbide, 100% Virgin Raw Material | |
| Diameter | 1-20mm, Customized or Standard | Type | Other, End Mill, End Mill | |
| Coating | TiAIN | Overall Length | 50-150mm |
Product Description

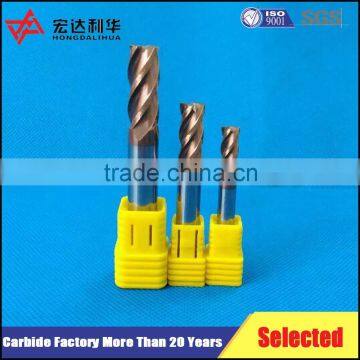

Tungsten Carbide End Mill
Application of high performance end mill tungsten solid carbide milling cutter specification
Specifications
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow
Standard size or make to order for special specifications
specification | cutting | shank diameter | flute length | overall |
|
D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 |
|
D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 |
|
D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 |
|
D8.0*20*D8*75L | 8.0 | 8 | 20 | 75 |
|
D4.0*8*D6*100L | 4.0 | 6 | 8 | 100 |
|
D6.0*15*D6*100L | 6.0 | 6 | 15 | 100 |
|
D8.0*20*D8*100L | 8.0 | 8 | 20 | 100 |
|
D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 |
|
D12.0*30*D12*100L | 12.0 | 12 | 30 | 100 |
|
D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 | Unit:mm |
Description of solid carbide end mills ,CNC end mill ,hardness end mill
Flutes No. | 2/3/4 Flutes |
Material | HSS,Carbide etc. |
Coating | AlTiN,NACO BLUE/NACO BLACK/TiN etc. |
Helix Angle | 35°,45° |
Hardness | HRC45/55/58/65 |
Size | Overal Length:50-150mm |
Customized | Accept |
Smooth Finish | Highly Polished |
Feature | Excellent chip evacuation |
Measurement | Metric |
WEIX45HRC Aluminum Square series - 2F/4F |
| ||||
Material:© WC=0.8(UM)Co=10 HRA=92.2 HV=1620 Rupture=4000(kg.N/mm²) |
| ||||
|
| ||||
Mode | FD Flute Dia | SD Shank Dia | FL Flute Length | TL Total Length | |
WEIX601 | 3 | 3 | 8 | 50L |
|
WEIX602 | 1 | 4 | 3 | 50L |
|
WEIX603 | 1.5 | 4 | 4 | 50L |
|
WEIX604 | 3 | 4 | 5 | 50L |
|
WEIX605 | 2.5 | 4 | 6 | 50L |
|
WEIX606 | 3.5 | 4 | 10 | 50L |
|
WEIX607 | 4 | 4 | 11 | 50L |
|
WEIX608 | 5 | 5 | 13 | 50L |
|
WEIX609 | 1 | 6 | 3 | 50L |
|
WEIX610 | 1.5 | 6 | 4 | 50L |
|
WEIX611 | 2 | 6 | 5 | 50L |
|
WEIX612 | 2.5 | 6 | 6 | 50L |
|
WEIX613 | 3 | 6 | 8 | 50L |
|
WEIX614 | 3.5 | 6 | 10 | 50L |
|
WEIX615 | 4 | 6 | 11 | 50L |
|
WEIX616 | 5 | 6 | 13 | 50L |
|
WEIX617 | 6 | 6 | 15 | 50L |
|
WEIX618 | 7 | 8 | 17 | 60L |
|
WEIX619 | 8 | 8 | 20 | 60L |
|
WEIX620 | 10 | 10 | 25 | 75L |
|
WEIX621 | 12 | 12 | 30 | 75L |
|
WEIX622 | 14 | 14 | 35 | 100L |
|
WEIX623 | 16 | 16 | 40 | 100L |
|
WEIX624 | 18 | 18 | 40 | 100L |
|
WEIX625 | 20 | 20 | 40 | 100L |
|
Lengthening |
|
|
|
|
|
WEIX626 | 3 | 3 | 15 | 75L |
|
WEIX627 | 4 | 4 | 20 | 75L |
|
WEIX628 | 5 | 5 | 25 | 75L |
|
WEIX629 | 6 | 6 | 25 | 75L |
|
WEIX630 | 7 | 8 | 25 | 75L |
|
WEIX631 | 8 | 8 | 30 | 75L |
|
WEIX632 | 3 | 3 | 15 | 100L |
|
WEIX633 | 4 | 4 | 25 | 100L |
|
WEIX634 | 5 | 5 | 30 | 100L |
|
WEIX635 | 6 | 6 | 30 | 100L |
|
WEIX636 | 8 | 8 | 35 | 100L |
|
WEIX637 | 10 | 10 | 40 | 100L |
|
WEIX638 | 12 | 12 | 45 | 100L |
|
WEIX639 | 8 | 8 | 40 | 150L |
|
WEIX640 | 10 | 10 | 50 | 150L |
|
WEIX641 | 12 | 12 | 50 | 150L |
|
WEIX642 | 14 | 14 | 70 | 150L |
|
WEIX643 | 16 | 16 | 70 | 150L |
|
WEIX644 | 20 | 20 | 80 | 150L |
|
Super raw material
HRC45 | HRC55 | HRC60 | HRC65 |
YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
Grain Size:0.7um | Grain Size:0.6um | Grain Size:0.5um | Grain Size:0.5um |
Super coating
Item | AlTiN | TiAIN | TiSiN | NACO |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Contact:
Foreign Sales Representative: Susie
Mobile:+86 18507339883 (available 24 hours.)
Skype: zhuzhoulihua
QQ: 1441388789
Wechat: shen88fafa
Factory Address:Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou city, Hunan province, China
Postcode: 412000
