Home > Products > Tungsten Carbide End Mill Drill Bits > Coated Carbide Insert for End Mills Cutters from China
Coated Carbide Insert for End Mills Cutters from China
- Shenzhen Shanghai etc
- T/T L/C D/P D/A Credit Card
You May Like
-
Solid Carbide End Mills for CNC Milling Machine
Quality Choice
-
Cemented Carbide End Mills/Milling Cutter /Milling Cutter Tungsten
Quality Choice
-
Solid Carbide End Mills
-
Tungsten Carbide End Mills Cutter Can Be Customized/Non-standard
-
Carbide Cutting Tool Solid Carbide End Mills 1-20mm end mill cutter with Good Quality
-
Tungsten Solid Carbide End Mills
Product Details
| Place of Origin | Hunan, China | Brand Name | OEM | |
| Model Number | Standard Size | Material | Carbide | |
| Diameter | 1-20mm | Type | Other, End Mill, Square End Mill/Flat End Mill/Metal Cutting Tool | |
| Coating | TiAIN | Overall Length | 50-100mm |
Product Description
Tungsten Carbide End Mill
Application of high performance end mill tungsten solid carbide milling cutter specification
Cemented Carbide Producing Process Chart:
Specifications:
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow

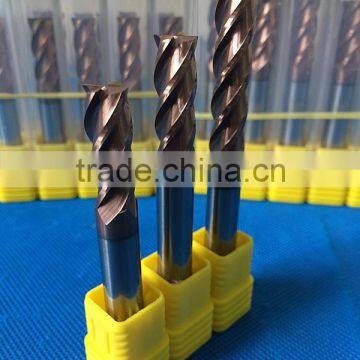

Detailed Images:
Standard size or make to order for special specifications:
Description of solid carbide end mills ,CNC end mill ,hardness end mill:
Super raw material:
HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 | Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
Super coating:
Item | AlTiN | TiAIN | TiSiN | NACO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Main Products:
Tungsten Carbide, Hardmetal Products, Carbide Cutting Tools, Titanium Alloy, Pure Tungsten, Cemented Carbide Products, Carbide Inserts, Carbide Rods, Carbide Plate and Bars, Carbide Tips,carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits,Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and
Different other various type of the tungsten carbide products and so on.
Company Brief Introduction:
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Contact:
Foreign Sales Representative: Rosa
Whatsapp/Mobile:+86 18973330019
QQ:472524669
Website:
Factory Add: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, China
Postcode: 412000
