2 Poles 20A 277VAC Definite Purpose Contactor(SA-2P-20A-277VAC)

Hot  Products

----Electricl Equipments Assessories of DP contactors with 2 poles 20 FLA,differents coil voltages ---available for your choice.

----It original type was called CJX9 type

----This Hvacstar type have the same specification and following could safty use

Big Picture

For  2Pole 40Amps product   use in household air conditioning or refrigerator

  For  2Pole 30Amps product   use in household air conditioning or refrigerator

Following and specification

Electricity Type: AC

Number of Pole:2

Phase: 2

Main Circult Rating Voltage:600V

Main Circult Rating Current:30A40A

Certificate: UL/CSA/CE/S mark/CCC

Electrical life: 200000 times

Mechnical life: 600000 times

Coil voltage: 208V/240V

Unit weight: 0.5LB/0.23KG

Packaging Details: 50PCS/BOX Canton size

 Products Details

 All this picture you could find from our company contents

Product Features

Hecheng SA series Definite Purpose Contactors are suitable for commercial applications including air conditioner, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.

Range

 The SA Series Definite Purpose Contactors series product line is available in 1,1.5, 2, 3,4 poles contactors rated to from 24V to 600V AC.

Current load rated at  20FLA,25FLA,30FLA,40FLA,50FLA,60FLA,75FLA,90FLA,120FLA available.

Flexibility and Convinence

 SA series Definit Purpose contactors series are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs.

These models are supplied as standard with combination quick connect terminals and screws that accept hex, slotted or Phillips screwdrivers. Also can supply the Auxiliary Switches together with the Definite Purpose Contactors.

Other products for your reference

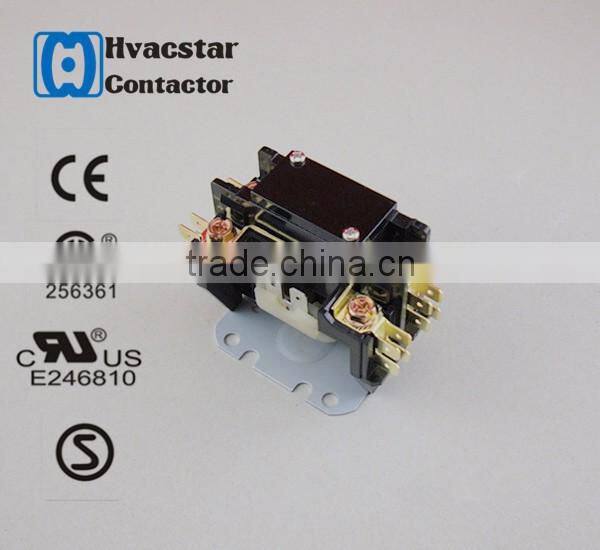

For  1Pole 30Amps product   use in household air conditioning or refrigerator

click here to browse

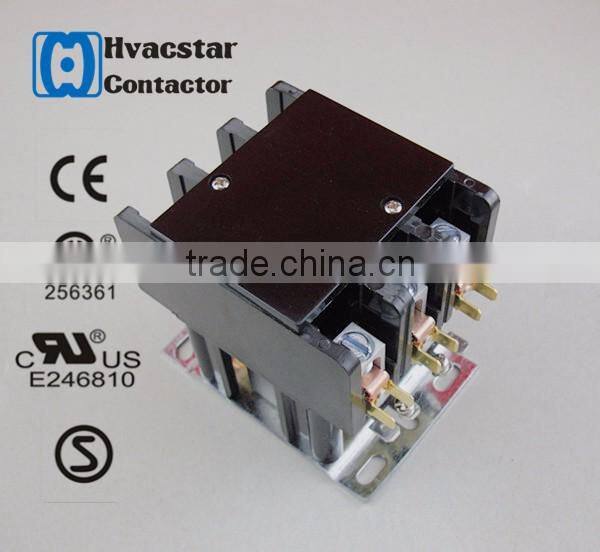

  For  3Pole 50Amps product   use in household vertical air conditioning or refrigerator

  For  3Pole 90Amps product   use in central air conditioning or refrigerator
