Air Conditioning Contactor Parts 75Amp 3 Poles 208V220V240V Dp AC Contactors
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Air Conditioning Definite Purpose Cotactor Electrical Contactors AC Contactor (3 Poles 40A 24V )
-
UL Listed Definite Purpose General Purpose Cotactor Magnetic Electrical Contactors/AC Contactor 220V (3 Poles 30A 240V )
-
Definite Purpose Air Conditioning Contactor 2Pole 40Amp 24VAC Hot Sale 2016
-
Air Condition Parts Compressor Protect Contactor 3Pole 75Amp 240Vac Definite Purpose ac Contactor
-
UL Siemens Electrical Contactor Air Compressor Protect Definite Purpose ac Contactor 3Pole 50Amp 24Vac
-
AC Contactor SA-4P-30A-240VAC With UL Certificate for Furnas Contactor
Product Details
| Place of Origin | Anhui, China | Brand Name | Hvacstar or OEM | |
| Model Number | SA-3P-90A-277VAC | Electricity Type | AC | |
| Number of Pole | 3 | Phase | 1 | |
| Main Circuit Rating Voltage | Other, 277V | Main Circuit Rating Current | Other, 90A |
Product Description
Central air conditioning ac contactor for HVAC ac contactor 3Pole 90Amps
Hot Products
--Electricl Equipments Assessories of DP contactors with 2 poles 20 FLA,differents coil voltages available for your choice.
--it original type was called CJX9 type, the original is discontinued.
--this Hvacstar type have the same specification and following could direct replace and safty use
--This Contactor is used on many brands of air conditioning equipment such as these brands listed:
Amana, Carrier, Coleman, Payne, Bryant, Day & Night, Intercity Products, Lennox, Trane, Rheem, Ruud, York Goodman and many other brands of Residential and Commercial Air Conditioning units.

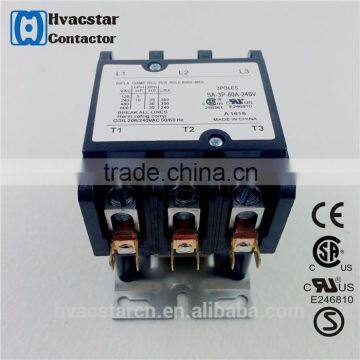

Big Picture
24V/120V/240V/380V and other range for choose
Following and specification
Electricity Type: AC
Number of Pole:3
Phase: 3
Main Circult Rating Voltage:600V
Main Circult Rating Current:30A40A
Certificate: UL/CSA/CE/S mark/CCC
Electrical life: 250000 times
Mechnical life: 500000 times
Coil voltage: 208V/240V
Unit weight: 1LB/0.45KG
Packaging Details: kraft box with standard carton 12PCS/carton
could design your own pattern on the box
Box dimensions: 50*37*25CM 21.75KGS/20.75KGS

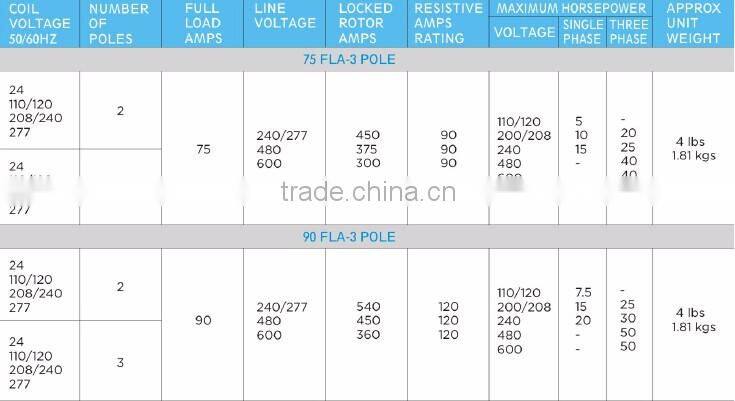

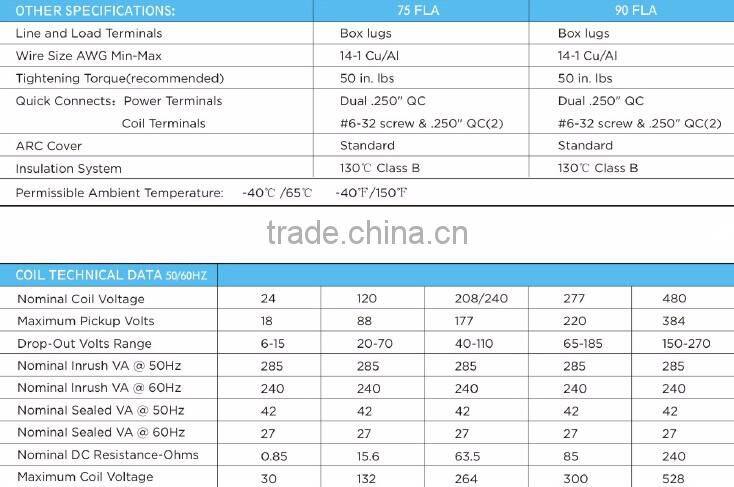

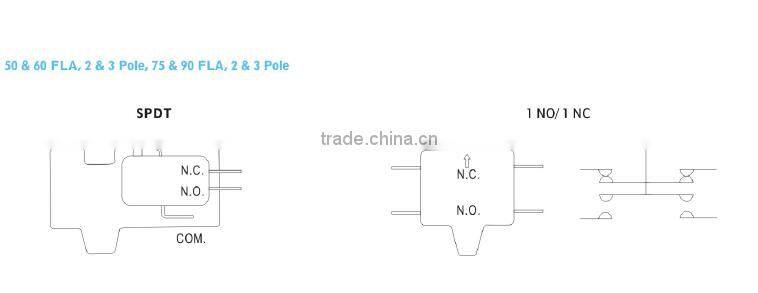

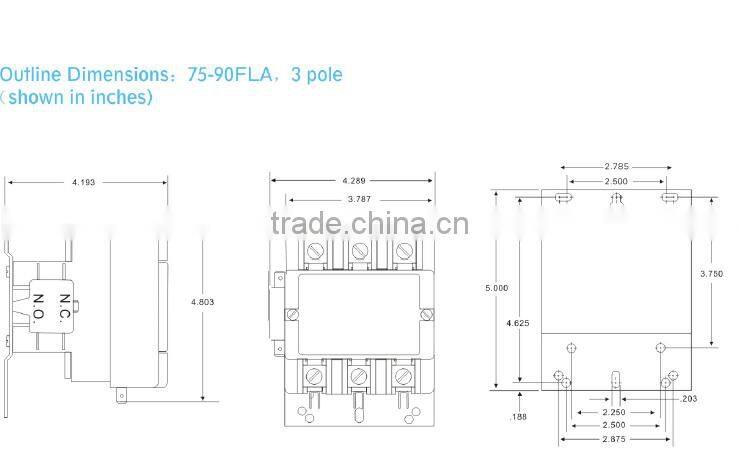

Catalogue Picture Describle
All this picture you could find from our company catalogue
Other Products For you Reference
siemens furnas type use in central air conditioning
click here to browse
Company profile
HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and produces all kinds of high or low voltage electrical products and accessories in China. Such as Contactors (including DP contactors, LC1 series contactors , SK series contactors , etc. ), Transformers, Relays, Starters, Fuses, Circuit Breakers, Switches, Cable Wires, etc
As an enterprise certified by ISO9001 system, we also get UL., IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.
As a 18 years professional manufacturer and exporter, hope we can have a chance to build a life-time cooperation and get profit together. You can get the best quality products, the most Competitive price here since the high quality of our contactor have satisfied the pickiest American market , 70% of our product have export to north America.

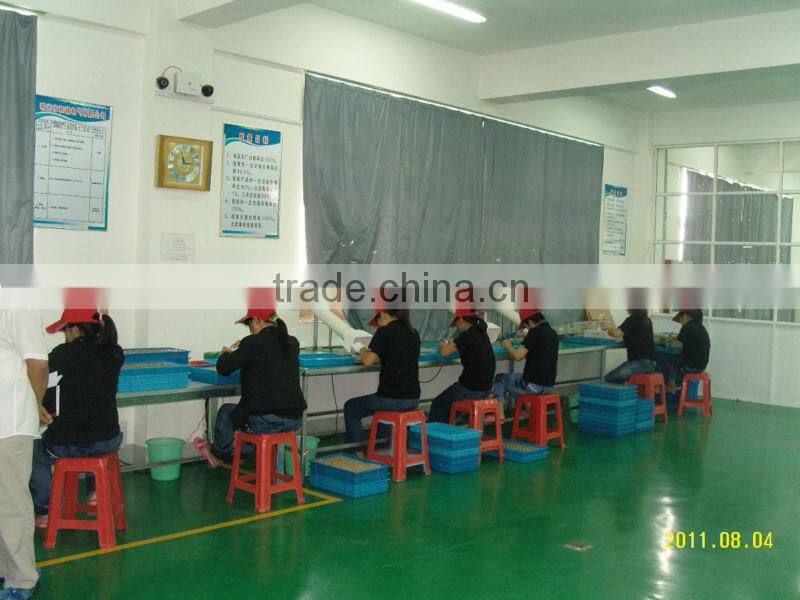

Factory Picture Shows
Why choose us
----Our company name is HeCheng electrical co.,ltd
----We are just manufacturer which have two factory in ZheJiang China and AnHui China,The factory verified by our north America client
----Our products are exported North America.Mid East.and Southeast Asia with rich experience,and safety for transportation so far
----We have the certificate of UL,CSA,CCC,CE
----Our business scope: ac/dc contactor for LC1(CJX2) type GMC type CJX9 type and Siemens Furnas type, relay , magnetic starter for QCX5 series.etc
Dear, choose me ,and you will have a powerful and faithful supplier!
