Air Conditioner Solar Contactor Gmc-22 Conditioner Contactors 4 Pole 9a Cjx9-30/2 120 Auxiliary Contactor

 electrical parts use in air condition or refrigerator protect equipment

SA-4P30A24V

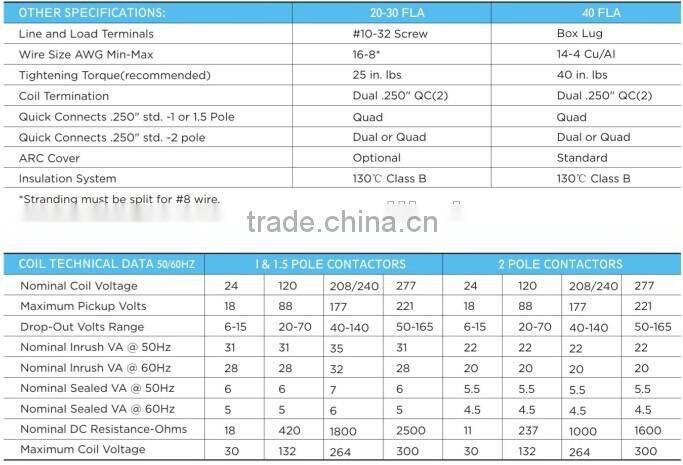

Following and specification

Electricity Type: AC

Number of Pole:4

Phase: 3

Main Circult Rating Voltage:600V

Main Circult Rating Current:20A-40A

Certificate: UL/CSA/CE/S mark/CCC

Electrical life: 250000 times

Mechnical life: 1000000 times

Coil voltage: 208V/240V

Unit weight: 1LB/0.45KG

Packaging Details: 25PCS/BOX Canton size

Big Picture

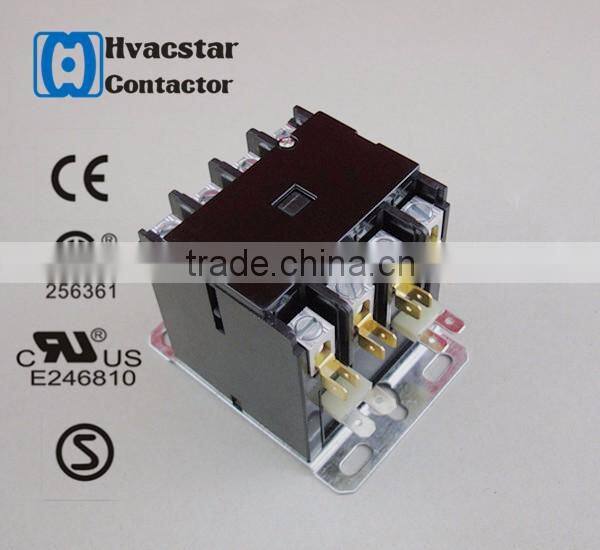

For 4Poles 20A30A product

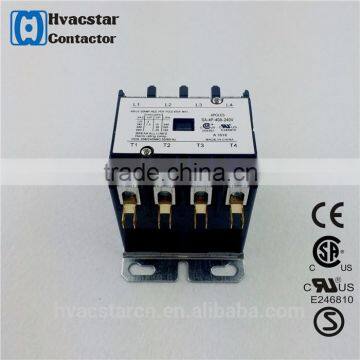

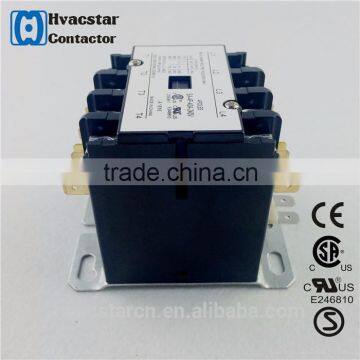

For 4Poles 40A product

Products Details

 All this picture you could find from our company contents

Products Application

Hecheng SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.

Range

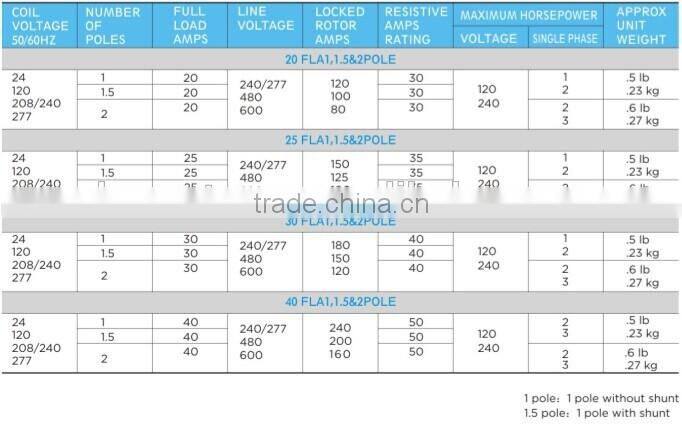

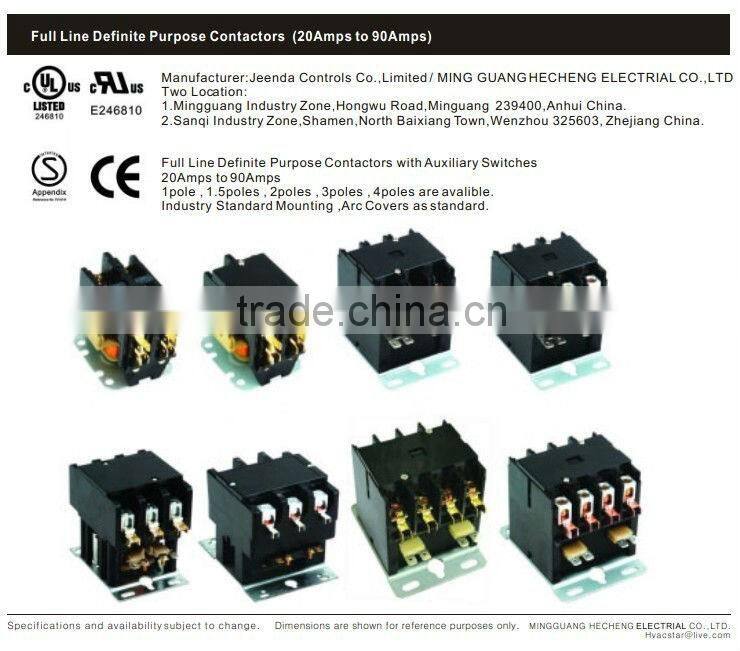

The SA Series Definite Purpose Contactors series product line is available in 1,1.5, 2, 3,4 poles contactors rated to from 24V to 600V.Current load rated at  20FLA,25FLA,30FLA, 40FLA,50FLA,60FLA,75FLA,90FLA available.

Flexibility and Convenience

SA series Definit Purpose contactors series are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs.

These models are supplied as standard with combination quick connect terminals and screws that accept hex, slotted or Phillips screwdrivers. Also can supply the Auxiliary Switches together with the Definite Purpose Contactors.

Other Product

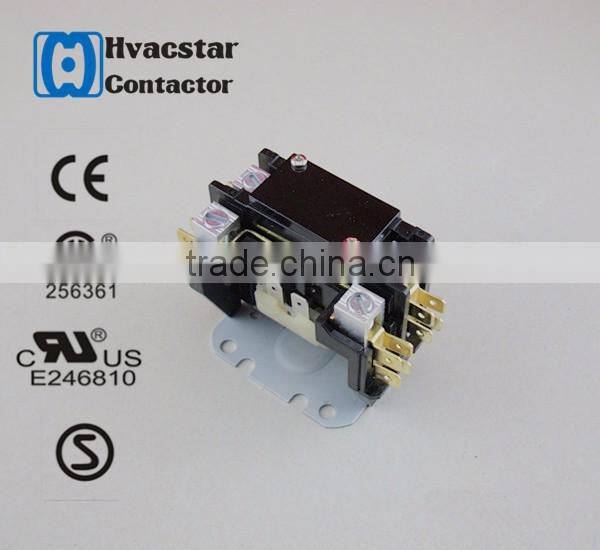

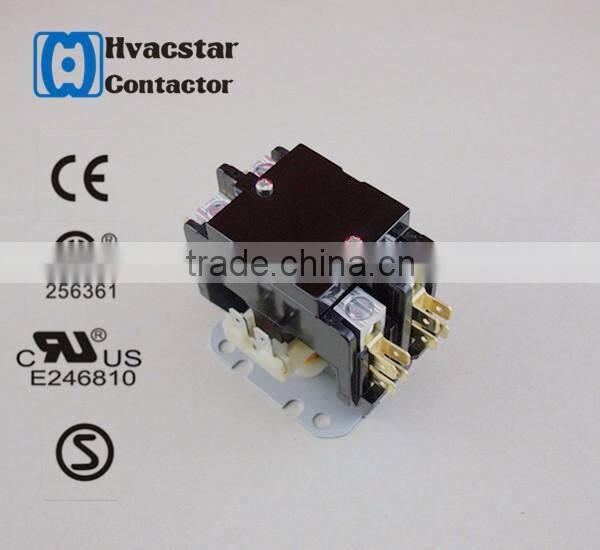

For 1Poles 40A product

For 2Poles 40A product

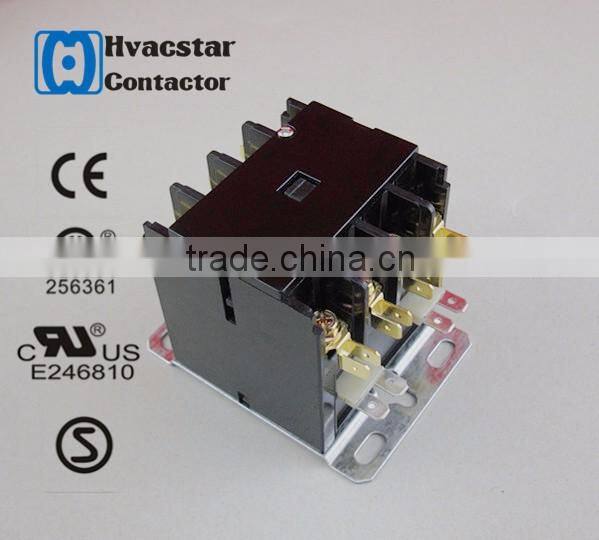

For 3Poles 40A product

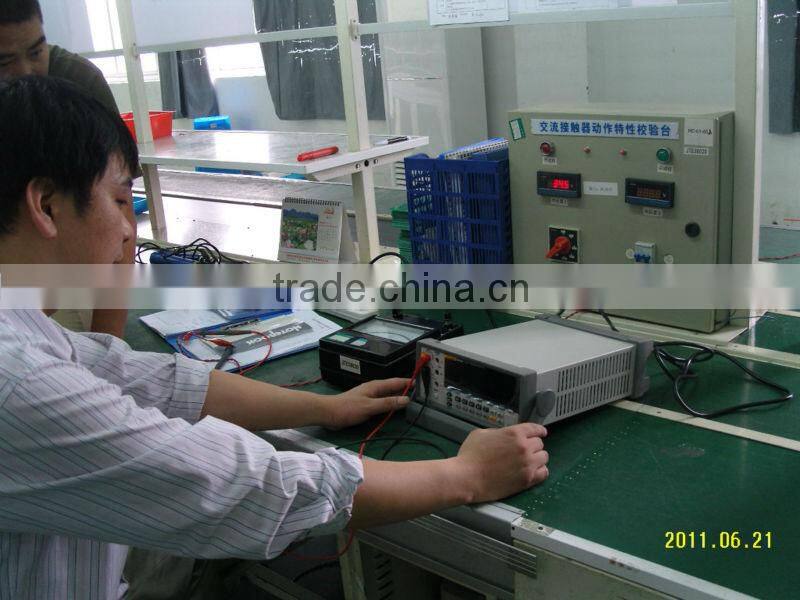

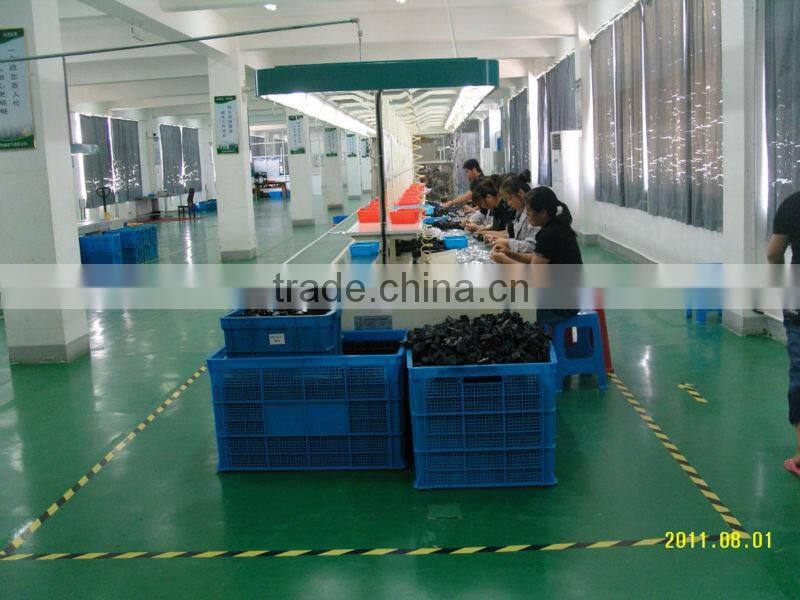

Our Factory
