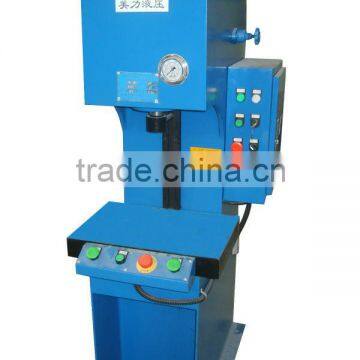

Small and medium-sized hydraulic track link press

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	MEILI
Model Number	Y41	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

hydraulic track link press
1.customized various types
2.non-standard hydraulic press
3.simple operation

Small and medium-sized hydraulic track link press

Type		Unit	1T	1.6T	2.5T	4T	6.3T	10T	16T	25T
Nominal force		KN	10	16	25	40	63	100	160	250
Max pressure of liquid		Mpa	4.2	5.1	5	7.9	8	8	13	20.3
Max opening height		MM	300	300	300	400	450	500	550	600
Max slide stroke		MM	120	160	160	200	250	300	350	350
Slide speed	Down	MM/S	57	42	47	47	48	48	48	48
Slide speed	Return	MM/S	80	75	77	77	81	81	78	80
Depth of throat		MM	160	160	160	180	250	250	280	280
Table size	F.B	MM	400	400	480	480	550	550	600	600
Table size	L.R	MM	300	300	320	320	440	440	500	500
Table height above the floor		MM	710	710	730	720	700	710	710	710
Diameter of blank-holding hole		MM	50	50	60	60	70	70	80	80
Outline dimensions	L.R	MM	580	580	590	595	620	640	740	755
	F.B	MM	780	800	810	850	1080	1080	1140	1280
	Height	MM	1450	1460	1565	1700	1860	1950	2010	2100
Motor power		KW	1.5	1.5	2.2	2.2	3	4	5.5	5.5
Total weight		T	280	350	420	410	684	900	1140	1210
