Home > Products > Y32 four-column hydraulic press > 400ton Four-column Horizontal Hydraulic Press Machine With Professional 12years Experience

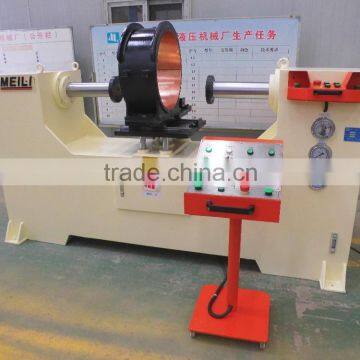

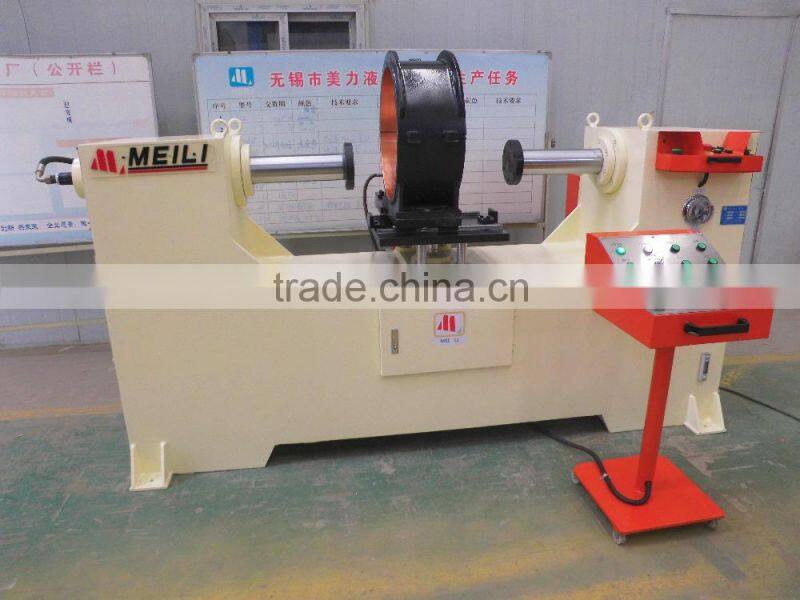

400ton Four-column Horizontal Hydraulic Press Machine With Professional 12years Experience
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Professional Factory for Used Rubber Moulding Hydraulic Press With Big Table
-
Most Competitive Price and High Quality Deep Drawing Used 500 Ton Hydraulic Press Machine for Sale
-
Allen-Bradley(AB)rockwell PLC Hydraulic Heat Press With Over Load Protection Sheet Plate With Light Curtain
-
Small Four Column Used Hydraulic Press Wiht High Quality
-
CE ISO Approved Hydraulic Heat Press Machine
-
High Quaity and Cheap Hydraulic Press 200 Ton
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | China | |
| Brand Name | MEILI | Model Number | Y32-200 | |
| Voltage | 220V/380V(According | Power(W) | 300kw | |
| Weight | 50tons | Dimension(L*W*H) | 2740*2280*3850mm | |
| Certification | CE ISO | Warranty | 2 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dedicated to tensile, bending, sheet metal formig processes, blanking, correcion pressing, punching. Suitable for automotive, aerospace and chemical industries need.
Following are the specifications
Model | Y28-100T/160T | Y28--200T/315T | Y28-315T/515T | ||
Specification | Unit | Parameters | |||
Rated force | KN | 1600 | 3150 | 5150 | |
Drawing force | KN | 1000 | 2000 | 3150 | |
Pressing force | KN | 300*2=600 | 575*2=1150 | 1000*2=2000 | |
Pressing slide return force | KN | 140 | 240 | 460 | |
Eject force | KN | 200 | 280 | 630 | |
Max. hydraulic pressure | Mpa | 25 | 25 | 25 | |
Max. drawing slide shut height | mm | 900 | 900 | 1150 | |
Max. pressing slide shut height | mm | 500 | 600 | 750 | |
Max. drawing slide stroke | mm | 450 | 450 | 600 | |
Max. pressing slide stroke | mm | 400 | 450 | 550 | |
Ejection stroke | mm | 200 | 200 | 250 | |
Drawing slider | L-R | mm/s | 800 | 1120 | 1400 |
F-B | mm/s | 800 | 1000 | 1400 | |
Pressing slider | L-R | mm/s | 800 | 1120 | 1400 |
F-B | mm/s | 800 | 1000 | 1400 | |
Drawing slider speed | Idle stroke | mm/s | 150 | 150 | 150 |
Pressing | mm/s | 9-20 | 9-20 | 7-15 | |
Return | mm/s | 145 | 140 | 105 | |
Pressing slider speed | Idle stroke | mm/s | 150 | 150 | 180 |
Pressing | mm/s | 30 | 32 | 23 | |
Return | mm/s | 125 | 120 | 100 | |
Work table Size | F.B. | mm | 800 | 1120 | 1400 |
L.R. | mm | 800 | 1000 | 1400 | |
Main motor power | kw | 14 | 18 | 26 | |
Voltage | 380V, 50Hz, 3 Phase | ||||
Operating Temperature | ℃ | 0-40 | |||
Total Weight(Approx) | KG | 8000 | 14500 | 31500 | |

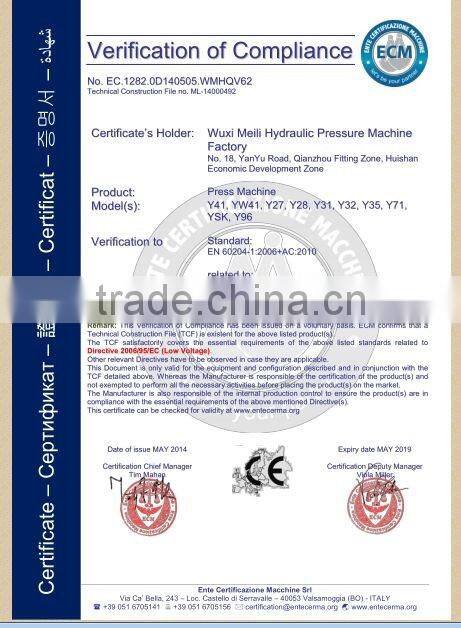

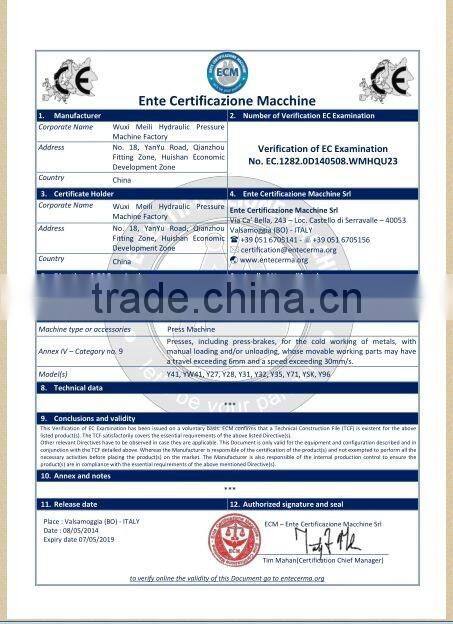

Certifications:
