MEILI-Y41-6.3T Single-column Hydraulic Steel Blanking Machine for Sale
- Shanghai
- T/T
You May Like
-
Meili Y41-1T C-type Small Sheet Metal Straightening Machine
-
Meili Y41-1T C-type Small Hydraulic Straightening Press Machine
-
Meili Y41-1T C-type Small Moulding Press Machine
-
Meili Y41-1T C-type Small Hydraulic Press-fitting Machine
-
MEILI-Y41-10T Single-column Small Press Machine Hydraulic Power High Quality-CE&ISO9001
-
Meili Y41-1T C-type Small Hydraulic Shaft Straighten Machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Jiangsu, China | |
| Brand Name | MEILI | Model Number | Y41 | |
| Power(W) | 4KW | Weight | 500kg | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
steel blanking machine1.Single-column Hydraulic Press Machine
2.Type:6.3T
3.Warranty:1 year
4.CE,ISO9001

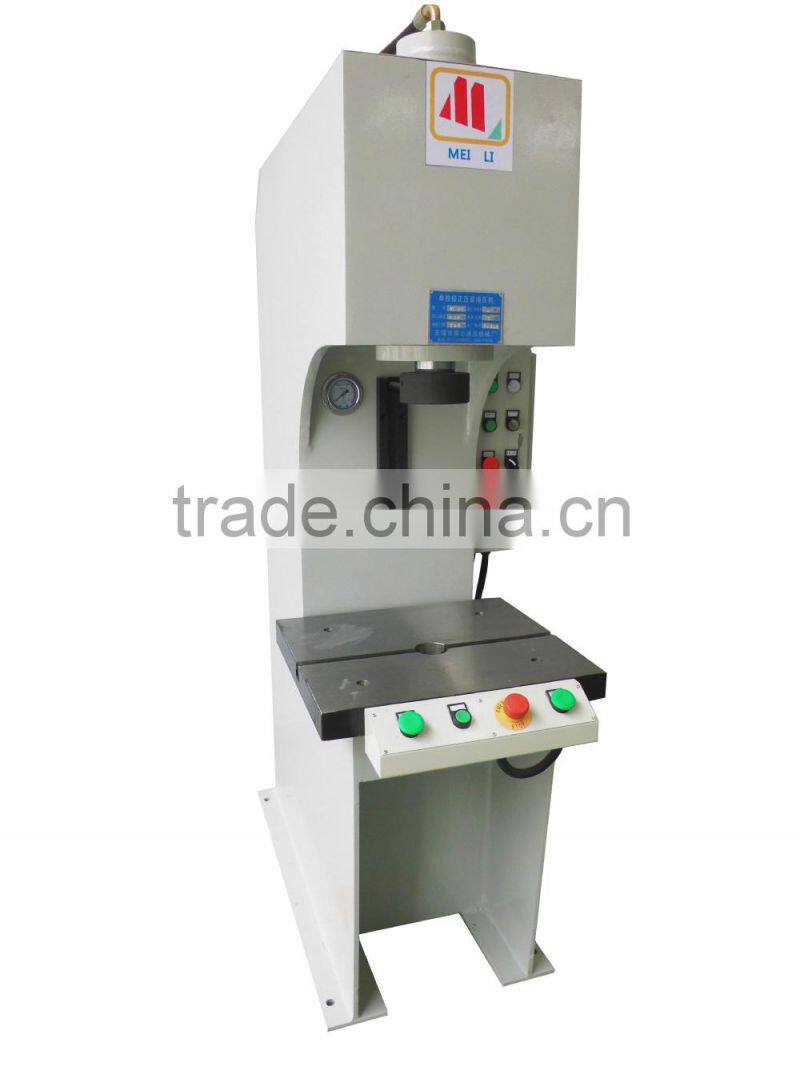

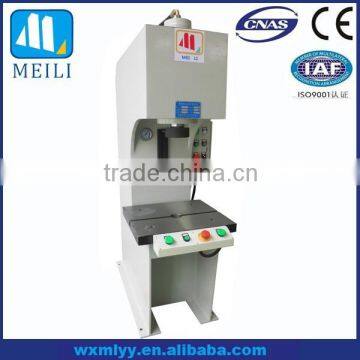

MEILI-Y41-6.3T single-column hydraulic steel blanking machine for sale
Introduction
Scope: Car and motorcycle shaft, rod, rails, various beam, channel, round timber, angle correction, the textile industry roller and so on.
Control: Hands-button control, foot switch control, emergency stop button, manual / automatic modes.
Optional Accessories: Servo system, PLC control, touch screen, upper and lower limit, lifting mechanism, speed control valve.
Specification
Item | Hydraulic Press Machine |
Model | Hydraulic Press Machine -Y41 - 6.3T |
Type | 6.3T |
Nominal Force | 63KN |
Max. Pressure of Liquid | 8.1Mpa |
Max. Opening Height | 500mm |
Max. Stroke of The Piston Rod | 250mm |
The Velocity of The Spindle Nose | Down:45mm/s |
Return:85mm/s | |
Depth of Throat | 250mm |
Table Size | F.B:440mm |
L.R:500mm | |
Table Height Above The Floor | 710mm |
Motor Power | 4KW |
Outline Dimensions | F.B:1080mm |
L.R:620mm | |
Height:1700mm | |
Warranty | 1 year |
Certificate | CE, ISO9001 |
MOQ | 1 Set Hydraulic Press Machine |
Delivery Time | 15-30days For Hydraulic Press Machine |
Feature
--Structural steel plate welded
--Commutation high sensitivity
--Non-contact and air travel
--Manual / semi-automatic operation
--Accuracy can be calibrated to 0.03mm
Hydraulic Press Machine Specifications, as follows:
Pre-sale Service
Aiming at providing the optional solution for your sheet-metal working:First,understand customers' needs and feedback of real the working condition. Then, tells customers what we can provide for them.In the prosess, we will provide recommandations about the standard product selection, non-standard product design, productstandards, raw material selection, product inspection and testing requirements ect.
After-sale Service
Keep track of the usage condition of the equipment to solve all your problems after the equipment was installed. Prodive factory inspection reports, quality system reports and certificates of qualification.We provide services to translate operation manual and other documents into your language, worry-free to operate and maintain 7x24 technical, we do care your real problems anytime.
Engineers available to service machinery overseas.
We have continues record for our customs with details to provide faster and more efficient custom service.
Pack & Transportation
We have freight forwarder as good cooperation partner; we also have the export trading permission to reduce costs and save your valuable time.
We offer woodcase or plastic wrapping to keep machine safe.
Wuxi Meili Hydraulic Pressure Machine Facotry is a professional hydraulic press system developing, producting and saling enterprise which established in 2006.
After 8 years of continuous development, it becames one of the largest hydraulic press enterprises in Jiangsu Province(China mainland).
With over 8 years of design/development experience and refinement of every type of press in use today, Our facotry now offers single-column hydraulic press, double-column hydraulic machine, four-column hydraulic machine, hydraulic pressure management systems, and other desktop 8 series and 150 varieties of customized production of non-standard hydraulic press.
