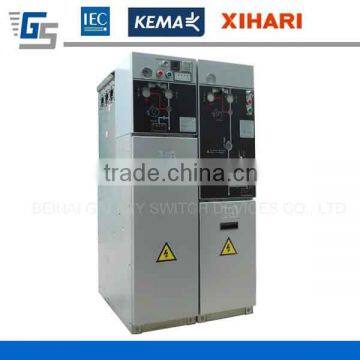

GLX 24 series 24kV high voltage extensible SF6 gas insulated ring main unit(RMU), SF6 GIS

Specifications

GLX24 series SF6 Ring Main Unit is an estensible, SF6 insulated siwtchgear, with rated voltage of 12&24kV. All its HV live parts are contained in an air-tight gas tank, which is made from stainless steel of 3mm. The whole switching assebly is SF6 insulated, and free from any external influence, ensuring it great reliability of service and maintenance free. By plug-in type busbar extension,

GLX24 series RMU can be of free combination and full modularization. The busbar extension has passed type test for power and thermal stalility, and is fully insulated and shielded, exhibiting high reliability and safety.

GLX24 series Ring Main Unit is suitable for all MV network up to 24KV, all compact power stations, power distribution substations in all important industries, such as petrol-chemical industry, metallurgical and mining industries, and all transformer substations and wing power system.

Conformity with standards

GLX24 series meets the following international standards and national standards:

GB11022-1999                  IEC60694:2002

GB3906-2006                    IEC62271-200:2003

GB3804-2004                    IEC60265-1:1997

GB1984-2003                    IEC62271-100:2001

GB16926-1997                  IEC62271-105:2002

GB1985-2004                    IEC62271-102:2002

GLX24 Unit Structure

GLX24-K unit

GLX-24-T unit

GLX24-V unit
