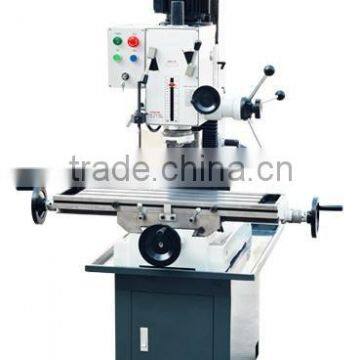

Square column Gear Drive Boring & Milling machine

FOB Price

USD $1,000 - $1,001 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.CE,standard
2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

ITEM	HTX7032FG	HTX7040FG	HTX7045FG
Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	450mm
Min distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Auto-feeding step of spindle	6
Auto-feeding amount of spindle	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°
Automaticlly lifting of spindle ( As customer's requirement)	240mm/min
Power feed attachment for table( As customer's requirement)	stepless
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement
Net/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm
Loading amount	36pcs/20’container
