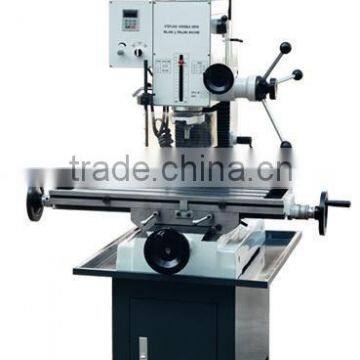

Frequency-alterable Drilling & Milling machine

FOB Price

USD $1,000 - $1,001 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.CE,standard
2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

ITEM	HZX7032V	HZX7040V	HZX7045V	HZX7032V/1	HZX7040V/1	HZX7045V/1
Max.drilling capacity	32mm/40mm/45mm			32mm/40mm/45mm
Max Face mill capacity	63mm/80mm/80mm			63mm/80mm/80mm
Max End mill capacity	20mm/32mm/32mm			20mm/32mm/32mm
Distance from spindle nose to table	400mm			450mm
Min.distance from spindle axis to column	285mm			260mm
Spindle travel	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8		M.T.3 or R8	M.T.4 or R8
Range of spindle speed(2 steps)	100-530,530-2800r.p.m,
Auto-feeding step of spindle	/			6
Automatic feeding amount of spindle	/			0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor power(AC)	1.1KW		1.5KW	1.1KW		1.5KW
Voltage/Frequency	110V or 220V	110V or 220V	110V or 220V	110V or 220V	110V or 220V	110V or 220V
Net weight/Gross weight	300kg/350kg	310kg/360kg		320kg/370kg	325kg/375kg
Packing size	770×880×1160mm
Loading amount	36pcs/20’container
