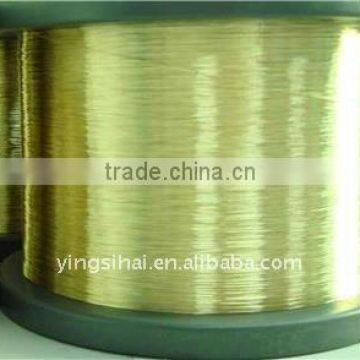

Brass EDM Wire electrode Manufacturer
- Shenzhen
- T/T
You May Like
Product Details
| Application | wire cutting edm | |||
| Wire Gauge | 0.20mm | Grade | CuZn37,CuZn35, first class | |
| Cu (Min) | 65% | Alloy Or Not | Is Alloy | |
| Place of Origin | Guangdong, China | Brand Name | Win sihai | |
| Model Number | Brass EDM Wire WSH091 |
Product Description
EDM Wire Manufacturer
1.Roundness Tolerance: +0.002mm
2.Spool: P3, P5, DIN125
3.Strength: 550-980N/M2
4.Size: 0.10-0.30mm
Features
High dimentional accuracy
Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
Outstanding straightness
Each spool are tested for curling and torsion and pride ourselves on the stable automatic wire threading performance or our product.
Stable mechanical properties
Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
Smooth surface
A unique quality control system involving special diamond wire drawing dies and lubricating oil ensures that KH wire has an extremely smooth surface, free from irregularities, dirt and scratches.
High reliability
Automatic measuring equipment ensures rigorous control of manufacturing batch.
Packing
5KG/roll, 4rolls per carton
carton weight=20kg
Carton size;340mm*250mm*195mm
Volume per Carton = 0.34*0.25*0.195*=0.0166 CBM
1000KG wire will be packed in 50carton Total Volume =0.35*0.26*0.18*50=0.83 CBM
A full 20 foot container can load 26 / 0.83 =21.5 21.5*1000 = 21500 KG
