Home > Products > YE3 series motor > IP55 380V three phase asynchronous electric motor

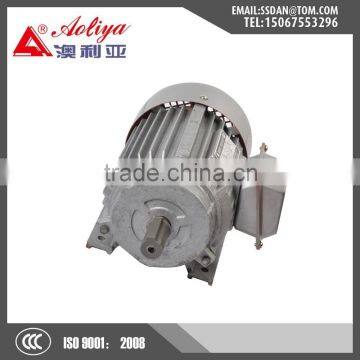

IP55 380V three phase asynchronous electric motor
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Brand Name | Aoliya | Model Number | YE3-90L-2 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 2.2KW | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, Other, CCC, ISO9001-2008 | |
| AC Voltage | Other, 380V | Place of Origin | Zhejiang, China | |
| Efficiency | IE 2 |
Product Description
380V three phase asynchronous motor
Product Specifications :
| Model | YE3-90L-2 asynchronous electric motor |
| Rated Voltage | 380V |
| Frequency | 50hz |
| Rated Output Power | 2.2kw |
| Rated current | 4.6A |
| Insulation class | F level |
| Rated rotation Speed | 2890 r/min |
| Protection | IP55 |
The asynchronous electric motor can be customized according to the different voltages, freqencies and rotation speed.
The techical parameter for YE3 series motor
| Modal | Rated of | Rated of | Output | Insultion | Rated rotation |
| voltage(V) | frequecy(Hz) | Power(KW) | Class | speed(r/min) | |
| YE3-80M1-2 | 380 | 50 | 0.75 | F | 2865 |
| YE3-80M2-2 | 380 | 50 | 1.10 | F | 2880 |
| YE3-80M2-4 | 380 | 50 | 0.75 | F | 1435 |
| YE3-90S-2 | 380 | 50 | 1.50 | F | 2900 |
| YE3-90S-4 | 380 | 50 | 1.10 | F | 1435 |
| YE3-90S-6 | 380 | 50 | 0.75 | F | 950 |
| YE3-90L-2 | 380 | 50 | 2.20 | F | 2890 |
| YE3-90L-4 | 380 | 50 | 1.50 | F | 1440 |
| YE3-90L-6 | 380 | 50 | 1.10 | F | 950 |
| YE3-100L-2 | 380 | 50 | 3.0 | F | 2890 |
| YE3-100L1-4 | 380 | 50 | 2.20 | F | 1450 |
| YE3-100L2-4 | 380 | 50 | 3.0 | F | 1450 |
| YE3-100L-6 | 380 | 50 | 1.50 | F | 950 |
| YE3-112M-2 | 380 | 50 | 4.0 | F | 2910 |
| YE3-112M-4 | 380 | 50 | 4.0 | F | 1445 |
| YE3-112M-6 | 380 | 50 | 2.2 | F | 955 |
| YE3-132S1-2 | 380 | 50 | 5.5 | F | 2920 |
| YE3-132S-4 | 380 | 50 | 5.5 | F | 1460 |
| YE3-132S-6 | 380 | 50 | 3.0 | F | 970 |
| YE3-132S2-2 | 380 | 50 | 7.5 | F | 2920 |
| YE3-132M-4 | 380 | 50 | 7.5 | F | 1460 |
| YE3-132M1-6 | 380 | 50 | 4.0 | F | 970 |
| YE3-132M2-6 | 380 | 50 | 5.5 | F | 970 |
| YE3-160M1-2 | 380 | 50 | 11.0 | F | 2942 |
| YE3-160M-4 | 380 | 50 | 11.0 | F | 1470 |
| YE3-160M-6 | 380 | 50 | 7.5 | F | 976 |
| YE3-160M2-2 | 380 | 50 | 15.0 | F | 2942 |
| YE3-160L-2 | 380 | 50 | 18.5 | F | 2942 |
| YE3-160L-4 | 380 | 50 | 15.0 | F | 1470 |
| YE3-160L-6 | 380 | 50 | 11.0 | F | 976 |
MAIN MARKET
Zhejiang shengzhou Aoliya electricmotor Co.Ltd
Main products include all kinds of electric motors for range hoods, air conditioners, air purifier,washing machines and fans. Our annual output is about 2,000,000 pieces.
QUALITY GUARANTEE
We have passed the ISO9001-2008 Certificate and CCC certificates. We give a 100% full inspection from the incoming materials to the final finished products. We strictly control the quality of the motor according to the ISO9001-2008.
Our factory
Motor material
==OUR SERVICE ( Why Choose Us ? )===
1. Warranty : 1 year warranty for all products.
2. Specializing in AC motor for 21 years
3. 100% inspection before final packing.
4. OEM: we can make the sample as your sample or design drawing.
5. Sample : free of charge when we start to cooperate.Small orders,Mixed orders,Trial orders are accepted . Customers pay the charge of Freight .
6.Prompt reply: we can reply your inquiry and email within 24 hours.
7. Fast Delivery: The delivery time is 15-28 days (depend on your QTY) after receiving the deposit.
