Drill Unit for World Wide Market
- Shanghai or Tianjin or Qingdao
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | Yutong | Model Number | YTR150D | |
| Usage | Ore | Voltage | Diesel engine | |
| Power(W) | 120kw | Dimension(L*W*H) | 13330mm*3100mm*3280mm | |
| Weight | 51000kg | Certification | ISO CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YUTONG YTR150D Drilling unit
Technical parameter of YUTONG YTR150D
Major technical parameters | |||
Maximum drilling diameter | mm | 1500 | |
Maximum drilling depth | m | 54 | |
Engine | Model | DE08TIS | |
Manufacturer | Korea DOOSAN | ||
Configured power | kW | 120 | |
Power head | Max. output torque | KN*m | 128 |
Drilling speed | r/min | 6~35 | |
Pressurized cylinder | Maximum push force | kN | 150 |
Maximum pull force | kN | 160 | |
Stroke of sledge | mm | 3500 | |
Main winch | Lifting force | kN | 160 |
Maximum line speed | m/min | 70 | |
Diameter of steel wire rope | mm | 28 | |
Location | Front-placed | ||
Auxiliary winch | Pull force (first floor) | kN | 62 |
Maximum line speed | m/min | 65 | |
Diameter of steel wire rope | mm | 16 | |
Mast | Forwards inclination | ° | 3 |
Sidewards inclination | ° | 3.5 | |
Chassis | Model | Yutong-manufactured YLD280 | |
Width of crawler board | mm | 700 | |
Towing force | kN | 280 | |
Overall chassis length (wheel track) | mm | 4000 | |
Overall dimension | Equipment width under working state | mm | 4100 |
Equipment height under working state | mm | 18710 | |
Equipment length under transportation state | mm | 13330 | |
Equipment height under transportation state | mm | 3280 | |
Equipment width under transportation state | mm | 3100 | |
Weight | Working state | t | 51 |
Transportation State | t | 42.5 | |
Specification of standard drill rod | 5X12m φ377 friction-type drill rod (54 m) | ||
Specification of longest machine-locked drill rod | 4X12m φ377 machine-locked drill rod (43 m) | ||

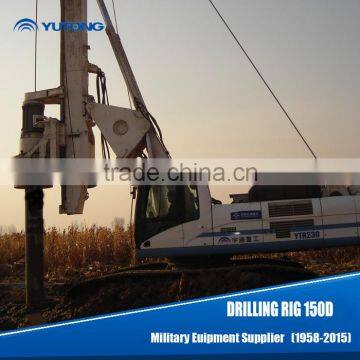

Picture of YUTONG YTR150D
![]() |
New technologies and new features of YUTONG YTR150D Crawler Rotary Drilling Rig
1. It is equipped with forehead cylinder, through which the pulley-yoke can automatically fold the mast, so as to reduce labor intensity and improve work efficiency;
2. This drill rig uses the most advanced electronic leveling device which can switch between manual operation and automatic operation and is capable of real-time monitoring the mast and carrying out automatic adjustment to ensure the mast is always in the vertical state during construction operation, and this can effectively ensure the pile-hole verticality meets the requirement of the engineering.
3. Hydraulic system uses advanced negative flow control technology, realizing the flow distribution as needed. In addition, the superposition of electric power can avoid overload, so as to maximize the use of engine power; the hydraulic system, with pilot proportional control valve, is high efficient and energy-saving and has high control accuracy. The drill rig can automatically adjust power head's torque and speed proportion according to the hard and soft degree of the stratum. This not only can ensure the high-efficient drilling and make sure the engine run stably, but also can reduce the requirements for operator's skill.
4. The electrical system adopts electro-hydraulic proportional control technology and CAN bus distributed control technology. This drill rig uses the most advanced electronic leveling device which can switch between manual operation and automatic operation, realizing high-precision detection of mast angle (accuracy ≤0.1 degrees) and depth detection precision of ±0.5m (excluding cumulative error), as well as rotation detection accuracy of ± 0.05 (excluding mechanical error), so as to fully guarantee the quality of construction.

Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.

- Can you give us a brief introduction to Yutong Company please?
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
- How about the quality guarantee and after -sale service?
For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
- How about the payment terms?
We accept T/T, L/C, D/P, D/A,even L/G.
There is no packing to the main machine, small parts and wear parts will be packed in box . |
We usually use roll-on-roll-off ship because the volume is too big to be put into a container. |
|
![]() |
- We supply the package of service to minning works. such as drilling, stone crushing, granule delivery, etc.
- We supply the package of service to sanitation works, such as road cleaning, city garbage compactor, delivery, etc.
- We supply the technique support to these customer for better usage of our products.
- 24 hours response principle, let us to help you faster and better.
- Some products can be found below, (Click the name or the picture for quick browsing)
| Catalogue | Products Description | |
![]() | Dump truck | Loadage can be 40t -100t |
![]() | Wheel loader | Loadage can be 3t - 8 t |
![]() | Bulldozer | 3 m3 capcity and other capcity |
![]() | Truck mounted crane | 5t - 50 t |
![]() | Crawler crane | 50t - 360 t |
![]() | Drilling rigs | Rotary Drilling Rigs; Auger Rigs; Anchor rigs |
![]() | Sanitation equipment | Sweeper; garbage compressing machine; sewage suction truck; Sprinkler Vehicle etc. |
![]() | Concrete Mixer Truck | 8 m3 - 10 m3 |
You can contact with me for more information and serive.
