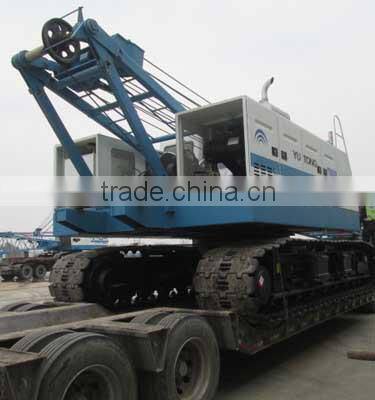

China Hot Sale 55 Ton Construction Hydraulic Crane

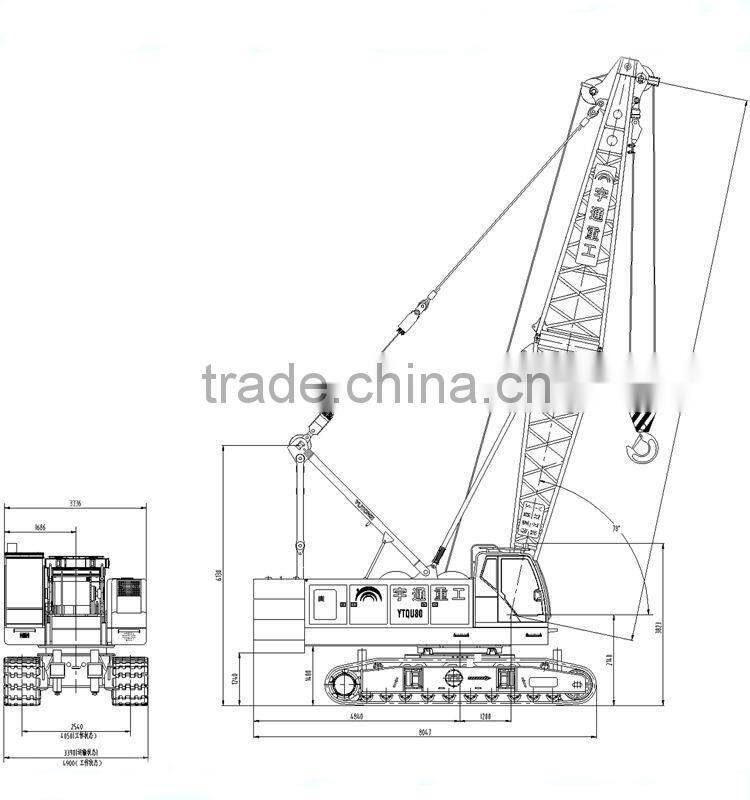

Main Technical Parameters

Unit

YTQU55B

Maximum hoisting capacity

t

55

Color

White

Maximum hoisting torque

t·m

55×3.8

Length of main arm

m

13~37 (52m is optional)

Length of auxiliary arm

m

6.10~15.25

Total maximum length of main arm and auxiliary arm

m

43+15.25

Luffing angle of main arm

°

30-80

Rope lifting and lowering speed of main winch

m/min

0~110

Rope lifting and lowering speed of auxiliary winch

m/min

0~70

Rope lifting and lowering speed of luffing winch

m/min

0~65

Slewing speed

r/min

0~2.2

Travelling speed

km/h

0~1.3

Gradeability (with basic arm and keep the cab rearward)

%

40

Engine rated output power/rotation speed

kw/r/min

132kW/2000rpm

Model of engine

Cummins 6BTAA5.9-C180

Total weight (with basic arm and largest hoisting hook)

t

55

Ground pressure of crawler (with basic arm)

Mpa

0.069

Counterweight mass

t

17.5

Crawler gauge

mm

3360(4520)

Wheel track of crawler

mm

4890

Width of crawler

mm

760

Maximum transportation weight for a single piece

t

32

Maximum transportation dimensions for a single piece (length X width X height)

mm

7200×3360×3360

Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center.

Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award.

 Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile.

• Can you give us a brief introduction to Yutong Company please?

We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.

• How about the quality guarantee and after -sale service?

For quality guarate, we give one year guarantee, and with 24hours response principle for better service.

We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.

• How about the payment terms?

We accept T/T, L/C, D/P, D/A,even L/G.
