China Max 200m Drilling Depth Pill Drilling Rig
US$ 215,600 - 258,000
/ Piece
1 Piece(Min. Order)
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Other, Soilmec Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | YUTONG | Model Number | YTA820A | |
| Usage | Other, fixed | Voltage | 24V | |
| Power(W) | 155kW(2300rpm) | Dimension(L*W*H) | 7430x2350x2800(mm) | |
| Weight | No | Certification | ISO | |
| Warranty | 12 mouths /2000 hours | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

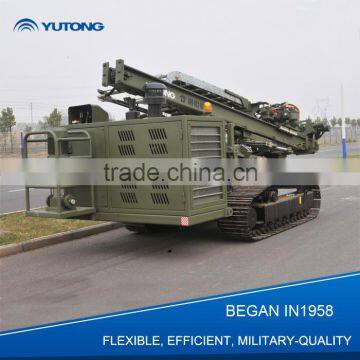

China Max 200m Drilling Depth Pill Drilling Rig
Product Description
Overall dimension (mm) | 7430×2350×2800 |
Travelling speed | 2.5 km/h |
Gradeability | 30° |
Maximum traction | 132kN |
Engine power | 155kW(2300rpm) |
Flow of hydraulic system | 240L/min+240L/min+32L/min |
Pressure of hydraulic system | 250bar |
Push force/Pull force | 100/100 kN |
Drilling speed | 60/40,10/6 m/min |
Drilling stroke | 4020mm |
Maximum rotation speed | 102/51 r/min |
Maximum rotation torque | 6800/13600 Nm |
Impact frequency | 2400/1900/1200 Min-1 |
Impact energy | 420/535/835 Nm |
Drill hole diameter | ≤φ400 mm (Standard state: φ90-φ180 mm) |
Drilling depth | ≤200m (According to geological conditions and operating methods) |
Performance

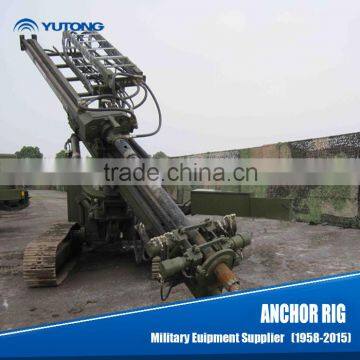

Performance Characteristics of Percussion Drilling Rig
:
:
1.YTA series man portable drilling rig is applicable to the construction of rock bolt, anchor rope, geological drilling, grouting reinforcement and underground micro pile in different types of geological conditions such as soil, clay, gravel, rock-soil and water-bearing stratum.
2.The man portable drilling rig can realize double-deck rotary drilling or percussive-rotary drilling and auger drilling (through screw rod). By matching with air compressor and down-hole hammer.;
3.They can realize follow-up drilling of casing pipe. By matching with shotcrete equipment, they can realize the construction technology of churning and supporting.
4.The main control system of YTA series man portable drilling rig adopts reliable proportional technology, but also can realize high and low speed switching quickly. The operation is more simple, easy, and reliable.
4.The main control system of YTA series man portable drilling rig adopts reliable proportional technology, but also can realize high and low speed switching quickly. The operation is more simple, easy, and reliable.

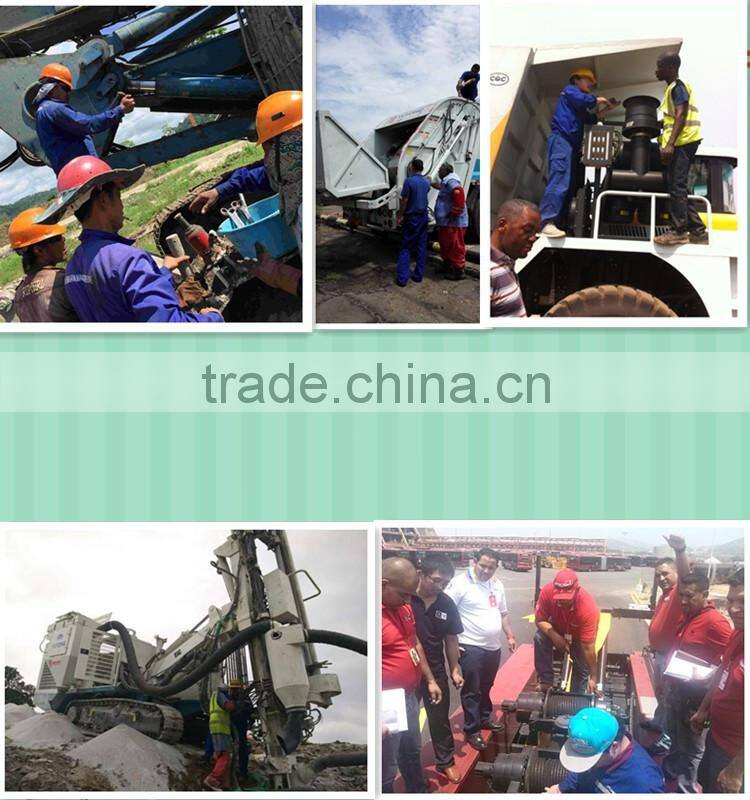

Our Services
Service after sale is based on the principle of service. We will offer the “12380”service:
1: After receiving the customer mobile, we will help customer solve problem through removing the resources of
YUTONG service and reply the customer clearly in one hours;
2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit
about the satisfaction of after sale service;
3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will
have 3 times On-Site Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service
engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving order to product scrapping, YUTONG will provide full reliance,
seamless docking and service in the period of product using.
