YUTONG Professional 5t 956H Wheel Loader
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Brand Name | YUTONG | |
| Model Number | 956H | Place of Origin | Henan, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 8430X3000X3370 | Rated Load | 5000kg | |
| Certification | GOST&CE | Warranty | 12months/2000hours | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

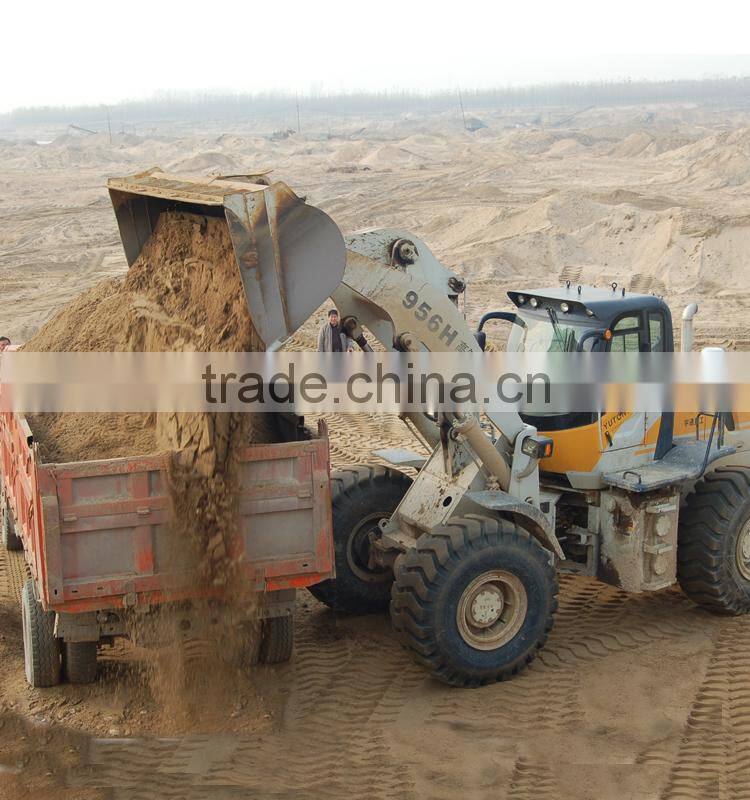

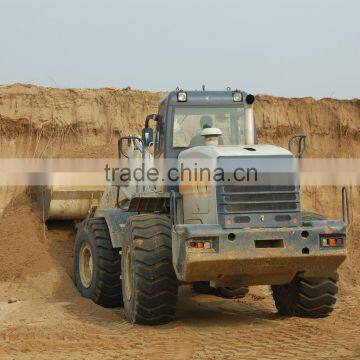

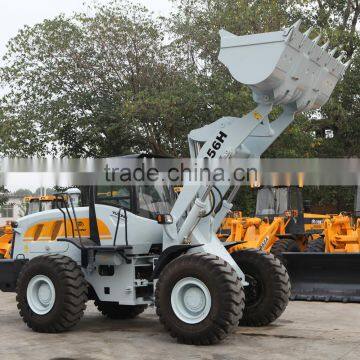

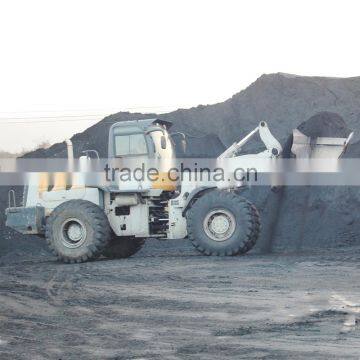

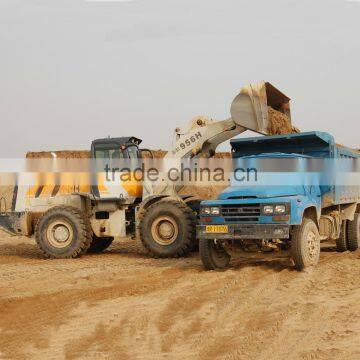

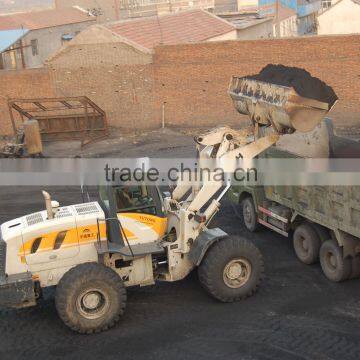

YUTONG Professional 5t 956H Natural Colo Wheel Loader
Main Technical Parameters of Wheel Loader
Rated load of wheel loader (t) | 5 |
Capacity of bucket (m3) | 2.7 |
Weight of complete machine (t) | 16.4-16.8 |
Unloading height of wheel loader (mm) | 3450 |
Unloading distance of wheel loader (mm) | 1070 |
Sum time of three items (s) | 10.8 |
Power of engine (kw) | 162 |
Lowest fuel consumption of wheel loader (g / kW.h) | 208 |
Maximum breakout force of wheel loader (kN) | 175 |
Steering angle of wheel loader | 36 |
Maximum traveling speed of wheel loader (km/h) | 36 |
Minimum turning radius of wheel loader | 6097 |
Outside of tire of wheel loader (mm) | 6397 |
Outside of bucket at transport position(mm) | 7020 |
Overall dimension of wheel loader (length x width x height) (mm) | 8430X3000X3370 |
Engine model of wheel loader | WD10G220E21 |
Rated power of engine (kw/hp) | 162 /220 |
Rated speed of engine (rpm) | 2200 |
Maximum torque of engine (N.m) | 860 |
Engine displacement of wheel loader | China II |
Gears of gearbox | Two forward gears and one backward gear |
Braking way of wheel loader | Caliper disc brake |
Tire model of wheel loader | 23.5-25 16PR |
Pressure of working system (MPa) | 18 |
Operation manner of working system | Flexible axle operation |
A/C system of wheel loader | Air conditioner, Warm air blower |
 |
|
| |
| |
| |
| |
Performance characteristics of Wheel Loader
| 1.The frame of wheel loader is arranged centrally and the turning radius is small; the steering system of wheel loader with coaxial flow amplification makes steering flexible |
2.162kW Weichai supercharged engine of wheel loader makes the power powerful; due to double-pump confluence technology, the hydraulic power is strong enough. |

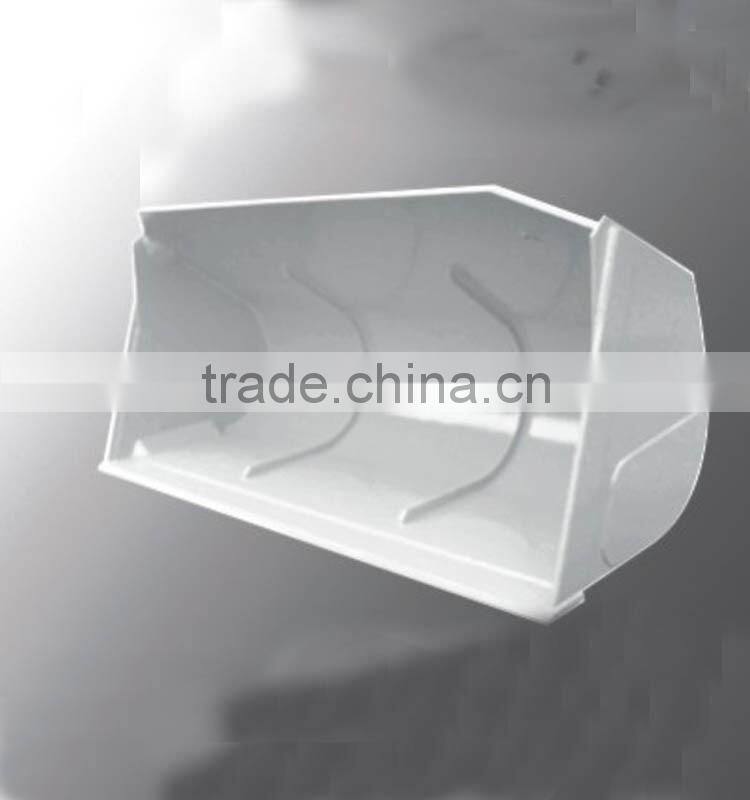

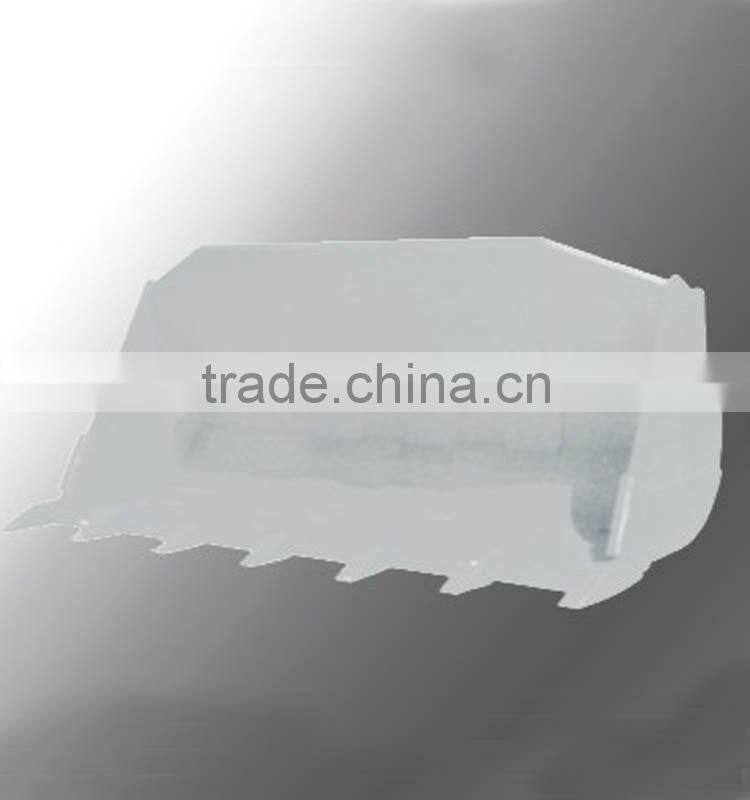

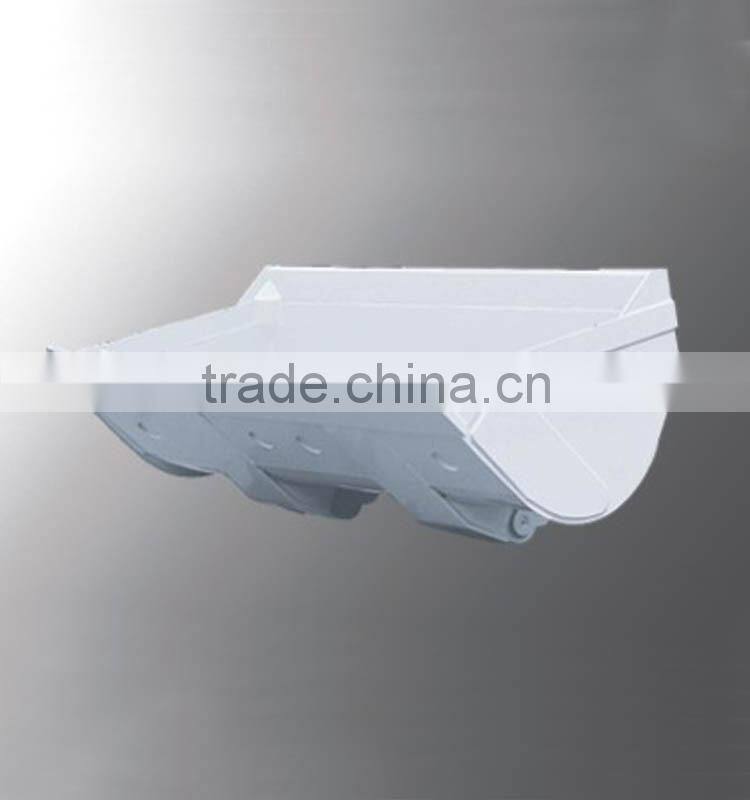

3.Extended bucket bottom of wheel loader, large cut-in force, large bucket drawback angle and high full-load coefficient. |

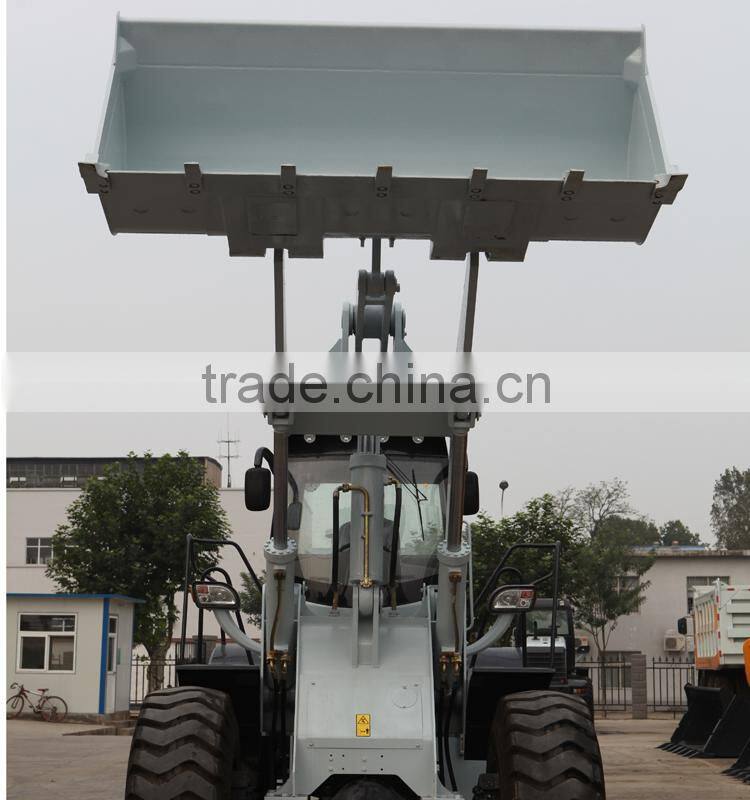

4.Working device of single rocker arm is optimized, motion is smooth, force transmission ratio is large and the bucket of wheel loader can lay flat automatically. |
| 5.Integral-type front frame of wheel loader, single-sheet beam rear frame and structural design of thickened plates significantly improve the reliability of structural components |
6.Hinge point of wheel loader adopts double-row centering cylinder roller bearing, which makes the stress more reasonable and makes the steering more flexible. |
7."C"-shaped protecting bush of wheel loader is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable. |
| 8.The hydraulic pipeline of wheel loader adopts "Cone-Ο" double seal meeting German DIN standards, with good leakproofness and strong capacity of anti-leakage |
|
|
|
|
|
|
| |
|
| |
