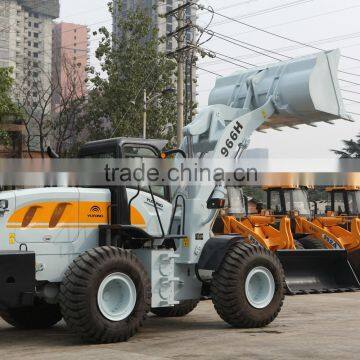

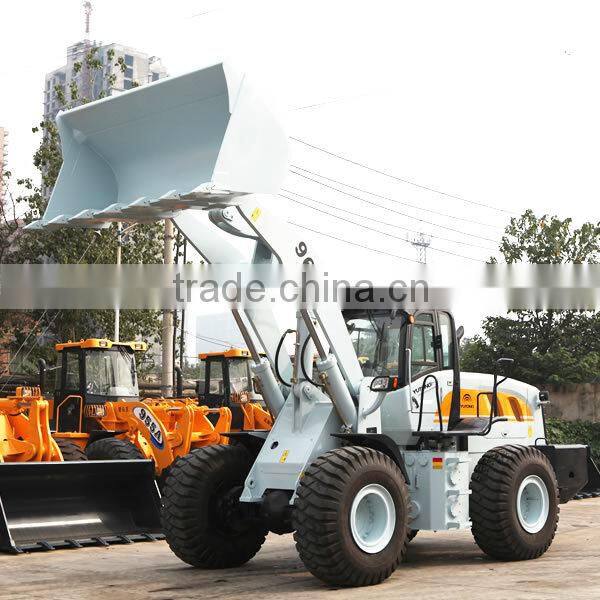

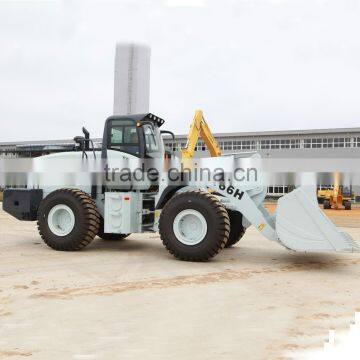

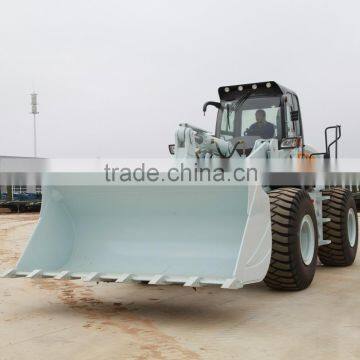

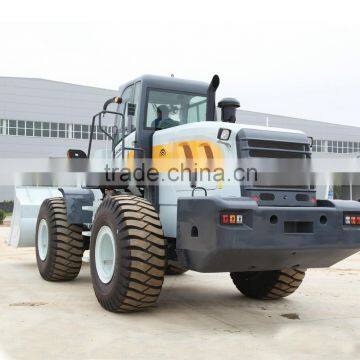

YUTONG 966H Wheel Loader Euro II Emission Standard

Characteristics of 966H:

a. Strong power;

b. High Efficiency ;

c. High intensity

 Major technical parameters of 966H

Performance of 966H

a.Strong power:

The maximum breakout force can reach 185kN and maximum traction can reach 196kN.

It adopts Shangchai 187 kilowatts turbocharged diesel engine, with emission reaching National II standard. The torque reserve coefficient is large.

The 420 torque converter developed by using military technology has large capacity and wide high efficiency area.

Fixed-shaft hydraulic power-shift gearbox developed by using military technology has high strength and large transmitted power.

Enhanced-type drive axle developed by using military technology has strong load capacity, which can reach 30 tons.

b. High Efficiency:

The compatibility of transmission parts is good. The allocation in starting and accelerating is reasonable and the working efficiency is high.

With unloading height of 3432 and unloading distance up to 1255, the vehicle has high shoveling and loading efficiency

The swing-type rear axle is arranged centrally, with swing angle of up to ± 11°. With four-wheel drive, it has good adaptability.

Articulated frame; the steering system with coaxial flow amplification makes steering flexible;

 c. High intensity:

According to CAE analysis, the front and rear vehicle frames are optimized, making the vehicle more durable.

The long wheelbase and enlarged balance weight make the overall stability stronger.

The support structure for centering swing axle is reasonable and has strong bearing capacity.

Air assisted oil type four-wheel fixed caliper disc brake system has high intensity.
